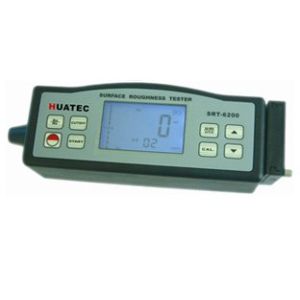

High resolution Ra, Rz Surface Roughness Tester SRT6200
Key words:portable roughness tester, roughness ra, surface
roughness, surface finish, roughness tester mitutoyo, roughness
testing machine, surface finish tester, surface roughness tester
manufacture, roughness testing machine manufacture
Features:
This instrument is compatible with four standards of ISO, DIN, ANSI
and JIS and is widely used in production site to measure surface
roughness of various machinery-processed parts, calculate
corresponding parameters according to selected measuring conditions
and clearly display all measurement parameters.
When measuring the roughness of a surface, the sensor is placed on
the surface and then uniformly slides along the surface by driving
the mechanism inside the tester. The sensor gets the surface
roughness by the sharp built-in probe. This roughness causes
displacement of the probe which results in change of inductive
amount of induction coils so as to generate analogue signal, which
is in proportion to the surface roughness at output end of
phase-sensitive rectifier.
The exclusive DSP processes and calculates and then outputs the
measurement results on LCD.
* Very easy to operate
* Multiple parameter measurement: Ra, Rz
* Highly sophisticated inductance sensor
* Built-in lithium ion rechargeable battery and control circuit
with high capacity
* Small in size, light in weight and easy to use
* Can communicate with PC computer for statistics, printing and
analysing by the optional cable and the software for RS232C
interface.
*Manual or automatic shut down. The tester can be switched off by
pressing the Power key at any time. On the other hand, the tester
will power itself off about 5 minutes after the last key operation.
Specifications:
Display: 4 digits, 10 mm LCD, with blue backlight
Parameters: Ra, Rz
Display Range
Ra: 0.05-10.00um/1.000-400.0uinch
Rz: 0.020-100.0um/0.780-4000uinch
Accuracy: Not more than 10%
Fluctuation of display value: Not more than 6%

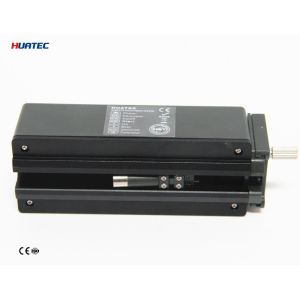

Sensor :
Test Principle: Inductance type
Radius of Probe Pin: 10um
Material of Probe Pin: Diamond
Measurement Force of Probe: 16mN(1.6gf)
Probe Angle: 90°
Vertical Radius of Guiding Head: 48mm
Maximum driving stroke: 17.5mm/0.7inch
Cutoff length (l): 0.25mm / 0.8mm / 2.5mm optional
Evaluation length: 1~5 cut off optional
Driving speed:
sampling length = 0.25mm Vt=0.135mm/s
sampling length = 0.8mm Vt=0.5mm/s
sampling length = 2.5mm Vt=1mm/s
returning Vt=1mm/s
Resolution : 0.001μm if reading ＜10μm
0.01μm if 10μm≤reading＜100μm
0.1μm if reading ≥100μm
Power Li-ion battery: rechargeable
Operating conditions: Temp. 0~50℃
Humidity <80%
Size:140x57x48 mm (5.5x2.2x1.9 inch)
Weight: about 420 g
Standard Delivery:
Main Unit 1
Carrying Case 1
Standard Sensor 1
Standard Sample Plate 1
Power Adapter 1
Operation Manual 1
Screwdriver 1
Adjustable Leg 1
Sensor Protector 1
Optional Accessories:
Cable and Software for RS-232
Extension Rod
Measurement Support
Special pick-up for grooves, bores and holes
Optional Calibration Certificate from third party lab:
