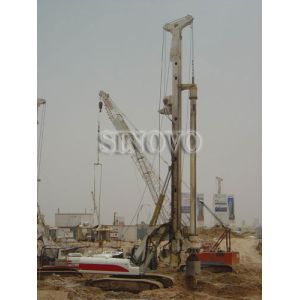

CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system

    Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers

    Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers
    • Buy cheap CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system from wholesalers

    CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system

    Ask Lasest Price
    Brand Name : SINOVO
    Certification : CE/GOST/ISO9001
    Model Number : TR180W
    Delivery Time : ON STOCK
    Payment Terms : T/T&L/C
    • Product Details
    • Company Profile

    CFA rotary drilling rig TR180W mounted on original CAT base with pull winch system


    TR180W CFA drilling equipment is suitable for oil drilling equipment, well drilling equipment, rock drilling equipment, directional drilling equipment, and core drilling equipment.Our CFA drilling equipment based on continuous flight auger drilling technique is mainly used in construction to create concrete piles.

    It can construct a continuous wall of reinforced concrete that protects workers during excavation.


    CFA piles combine the advantages of the driven piles and the bored piles, which are versatile and require no removal of soil.This drilling method enables the drilling equipment to excavate a wide variety of soils, dry or water-logged, loose or cohesive, and also to penetrate through low capacity, soft rock formations like tuff, loamy clays, limestone and sandstone etc.


    The maximum diameter of piling reaches 0.8m and max. depth achieves 16.5m, thereby helping overcome problems formerly connected to projects and execution of the pilings.


    Technical Parameters

    Euro Standards

    U.S. Standards

    Max drilling depth

    16.5m

    54 ft

    Max drilling diameter

    800mm

    32in

    Engine model

    CAT C-7

    CAT C-7

    Rated power

    187KW

    251HP

    Max torque for CFA

    90kN.m

    66357lb-ft

    Rotating speed

    8~29rpm

    8~29rpm

    Max crowd force of winch

    150kN

    33720lbf

    Max extraction force of winch

    150kN

    33720lbf

    Stroke

    12500mm

    492in

    Max pulling force of main winch (the first layer)

    170kN

    38216lbf

    Max pulling speed of main winch

    78m/min

    256ft/min

    Wire line of main winch

    Φ26mm

    Φ1.0in

    Undercarriage

    CAT 325D

    CAT 325D

    Track shoe width

    800mm

    32in

    Width of crawler

    3000-4300mm

    118-170in

    Whole machine weight

    55T

    55T
