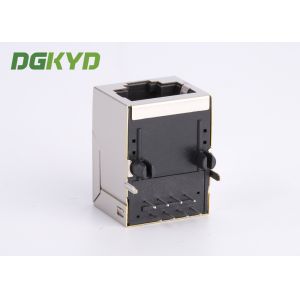

Shielded 100mb megabit POE RJ45 Magnetics 10 pins , Through Hole
| Connector Type | RJ45 |
| Number of Ports | 1 |
| Number of Rows | 1 |
| Applications | 10/100 Base-T |
| Mounting Type | Through Hole |
| Orientation | 90° Angle (Right) |
| Termination | Solder |
| LED Color | Green - Yellow |
| Number of Cores per Jack | 8 |
| Shielding | Shielded, EMI Finger |
| Features | Board Guide |
| Tab Direction | Up |
| Contact Finish | Gold |
| Shield Material | Copper Alloy |
| Housing Material | Polybutylene Terephthalate (PBT) |
| Connector Type | 8 Pin Shield LED Female RJ45 Connector |
| Number of Positions/Contacts | 8p8c (RJ45, Ethernet) |
| Termination | Solder |
| Shield | 0.20~0.25mm thickness brass with tin plated |
| Contact Material | Copper Alloy |
| Contact Finish Thickness | flash |
| Housing Material | Thermoplastic |
| Operating Temperature | -40 to 85°C | Withstand Voltage | AC1000V(50Hz)/min |
| Rated voltage: | 125VAC | Actuating Force | 5~15N |
| Contact Resistance | ≤0.03Ω | Life | 750 times |
| Insulation Resistance | ≥1000MΩ | | |
Integrated RJ45 connector main used to :
- 10/100M net card,PCMCIA net card,USB Hub,network
switch,router,fiber optic transceivers,optical transceiver,IP
phone, internet set-top box,internet camera,net
bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.
