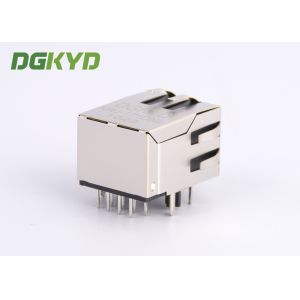

Right Angle integrated RJ45 single port female Jack with magnetics 8P8C For Router RJ45 With Transformer

Right Angle integrated RJ45 Network Jack 8P8C Magnetic For Router

Descriptions:

• 10/100Base-Tx RJ45 single port 1X1 Side Entry (Right Angle) without led
• Single port 1X1 Tab-Down RJ45 with internal magnetics
• Internal magnetics are 100% electrically tested for HI-POT and functionality
• Suitable for CAT5&6 fast Ethernet Cable or better UTP
• 350uHminimum OCL with 8mA bias current
• High performance for maximum EMI suppression
• Minimum 1500Vrms isolation per IEEE 802.3 requirement
• ROHS-6 peak wave solder temperature rating 260℃
• Operating temperarure range :-40℃ to +85℃
• Storage temperature range :-40℃ to +85℃
• Number of positions:8
• Number of contacts loaded:8
• Rohs compliant
• Length:21.3mm

Material specifications:

• Plastic core:Glass fiber filler PBT White (UL94V-0)
• Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
• PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
• Housing:Phenolic, PBT White (UL94V-0)
• Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

• Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box, internet camera, net bridge,

computer, telecommunication, MODEM, HomePNA,DSL／ADSL and so on.
