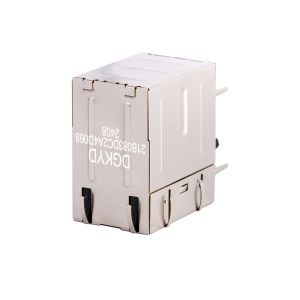

DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket

    Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers

    Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers
    • Buy cheap DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket from wholesalers

    DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket

    Ask Lasest Price
    Brand Name : DGKYD
    Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
    Delivery Time : 10 days
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 100K pcs/day
    Model Number : DGKYD21B083DC2A4D
    Price : Please contact us to get the latest price.
    • Product Details
    • Company Profile

    DGKYD21B083DC2A4D 2X1 dual port RJ45 connector, 100Mbps integrated filter, communication network port socket

    2x1 Stacked megabit RJ45 Ethernet connector, magnetics RJ45 Female Jack


    Product Specification Document
    DGKYD21B083DC2A4D068.pdf

    Part Number
    DGKYD21B083DC2A4D
    Brand
    DGKYD/OEM/ODM
    Place of Origin
    Guangdong of China
    Certification
    ISO9001/ISO14001/CE /UL/FCC/Reach/RoHS
    Product Type 
    Connector-Modular
    Connector Style
    Jack
    Jack Type
    RJ45
    Connector Type 
    Modular Jack
    Latch Style
    Standard
    Latch
    Down&Up
    Filter
    With Filter
    LED Option
    With LED
    LED Color
    Green/Yellow
    Panel Stops
    With Panel Stops
    Shielded
    Yes
    Applies To 
    Printed Circuit Board
    Performance Speed
    10/100/ BASE-T
    Grounding Options
    Panel Ground and PCB Ground
    Port Configuration 
    Dual ports
    Number of Positions 
    10
    Jack Configuration
    2 x 1
    Terminals per Port
    8
    Shield Material
    Copper Alloy preplated with Nickel
    PCB Mounting Orientation 
    Side Entry (Right Angle)
    Contact Mating Area Plating Material 
    Gold 6u/15u/30u/50u
    Contact Base Material 
    Phosphor Bronze
    Solder Tail Contact Plating Material 
    Tin-Lead over Nickel
    PCB Mounting Style 
    Through Hole
    Termination Method to PC Board 
    Through Hole-Press-Fit
    Board Lock
    With/Without Board Lock
    Housing Material 
    PBT Polyester
    Housing Color
    Black
    Housing Material  Temperature
    Standard
    UL Flammability Rating 
    UL 94V-0


    Descriptions:

    • 2 port 2X1 RJ45 with internal magnetics
    • Internal magnetics are 100% electrically tested for HI-POT and functionality
    • 350uHminimum OCL with 8mA bias current
    • High performance for maximum EMI suppression
    • Minimum 1500Vrms isolation per IEEE 802.3 requirement
    • ROHS-6 peak wave solder temperature rating 260℃
    • Operating temperarure range :0℃ to +70℃
    • Storage temperature range :-40℃ to +85℃
    • Length:29.00mm


    Competitive Advantage:

    Keyouda has various types of appearance and many kinds of internal schematic products,high quality,
    customer firstly ,100% test, 0 defect, short lead time are our best advantages.
