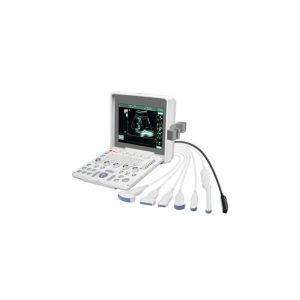

12.1-inch LED Screen Portable Color Ultrasound Scanner Color
Doppler Machine With B+PW(Duplex) Function
BIO 5000L is based on the Fifth technology platform, which is a
latest portable color Doppler ultrasound system. It is one not only
with advanced image processing technology but also practical
clinical solutions.
Advantage
1. 3D imaging for optional
2. Intuitive operation with Auto one-key image optimization
3. Instant images and reports transfer to PC
4. Streamlined work-flow, clean and convenient report system
5. Build-in 128G SSD,data storage more steadily
6. Rechargeable lithium-ion battery:2 hours continuous work
7. Application:Abdomen,Gynecology,Obstetrics,Urology,Blood
vessel,MSK,Small parts
8. Slim and elegant appearance design,less than 6 kg net weight
9. Auto Trace Calculation PW
10. Ultra-wide-band beam former
11. Intelligent imaging optimization technology
12. E-Crystal Unique Speaker Reduction Technology
13. AQ-Sonic Unique Noise Reduction Technology
14. Real-time triplex display B/Color Doppler/Pulse Wave Doppler
| System Specifications |
| Display | 12.1-inch LED screen |
| Probe connect | 2 |
| USB ports | 2 |
| Image formats | BMP, JPG, DCM, FRM,CIN |
| TCG | 8 Segment |
| B mode | 1024 frames |
| M mode | 12.4 s |
| Frame rate | ≥50fps |
| Display depth | ≥30cm |
| High-Resolution | 1024 *768 |
| Gray scale | 256 |
| Net Weight | 5.5 kg (with battery) |
| Dimensions | 29.8*31.8*13.8cm |
| Body markers | more than 100 Dynamic range,≤165dB |
| Display Language | English |
| Power | System operates via AC power |
| Ports | USB: 2 USB interface can be connected directly to the electronic
printing device to print report and to copy data by mobile storage
device |
| HDMI:Can be converted to VGA output interface,director connection
to a high-resolution display and other display and other display
devices,more convenient for patient to show an ultrasound image |
| LAN: It can be used directly connected the data cable and transfer
data to the internet |
| Image processing | AQ sonic:Reduce random noise |
| E Crystal:Adaptive speckle suppression improves contrast resolution |
| Multi-frequency probes for LD imaging modes |
| Ultra-wideband beamformer |
| Iintelligent imaging optimization technology |
| Image Zooming |
| Near and far Gain adjustment |
| With dual and duplex imaging |
| 2D, Color Doppler and PW displaying on one screen in real time |
| Large capacity Li-battery | 11.1V, 8000MAH |
| up to 1000 times charge-discharge,2 hours fully charged |
| Removable |
| 2.5 hours regular use |
| Auto switch to battery power in case of suddenly power off |
| Display Modes | Broadband, multi-frequency imaging |
| B, 2B, 4B, B+M, CFM, PDI, DPDI, PW, B+PW(Duplex) |
| B+CFM/PDI/DPDI+PW(Triplex) |
| Application | OB/GYN reporting. |
| Small part analysis |
| Cardiac analysis with intimate medial thickness measurement |
| Velocity Colour to detect colour flow with PW Abdominal,
Obstetrical, Gynecological, Cardiac, Small parts, Urological,
Vascular, Orthopedics, MSK |
| Standard Configuration | Options |
| 12.1-inch LED monitor | 3D function |
| Two transducer connector | Sony UP-897MD Printer |
| Control Panel | One more battery |
| 2 USB ports | Gel |
| HDMI | printer paper |
| LAN | Trolley |
| Handle | |
| Indicators: Power/Battery/Standby | |
| Optional probe |
| 5ACR60 Convex probe | R=60mm 2-5MHz |
| 5AL40 Linear probe | L=40mm 5-10MHz |
| 5AL25 Linear probe | L=25mm 5-12MHz |
| 5AMCR20 Micro-Convex probe | R=20mm 2-4MHz |
| 5AMCR11 Micro-Convex probe | R=11mm 5-8MHz |
| 5AMCVR Transvaginal probe | R=10mm 5-8MHz |
