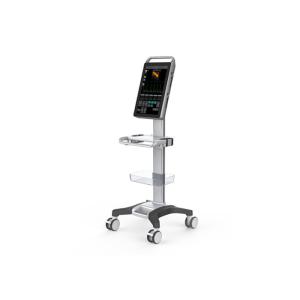

PW Function Color Doppler Machine Trolley Untrasound Scanner With 18.5 Inch Color Touch Screen

PW Function Color Doppler Machine Trolley Untrasound Scanner With 18.5 Inch Color Touch Screen​

Multiple application

Abdomen,OB/GYN,Urology,Blood vessel,Small parts,Reproductive Medicine,Puncture guided,Some special application like Foot and Musculosekeletal system check,Limited space clinic

Suitable for any department,any doctor simple mode:Greatly reduce measurement of ultrasonic packages,satisfy almost all the requirements of the sonographer.

Advantage

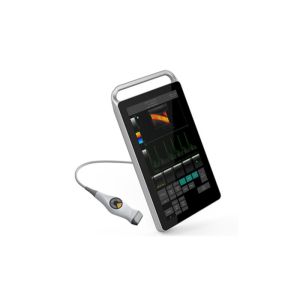

1. 18.5-inch full touch screen design,to ensure aseptic operation.

2. All metal shell with unique design, sturdy and durable.

3. Professional software packages for Puncture application.

4. Build-in large capacity battery,for 8 hours continuous work.

5. Advanced image processing technology with high resolution display.

6. Multiple application:Reproductive Medicine,puncture guided,some special application like foot and Musculoskeletal system check, limited space clinic.

7. With special attention to mode,P6 include two different mode,Expert mode and Simple mode,suitable for any department and quite accessible for any doctor.

Function

-1 probe connector, which can be expand to 3 connectors by the probe expansion module

-18.5"high-resolution color LCD monitor

-Equipped with more than 4 beamformer function

-Equipped with THI (Tissue Harmonic Imaging), and second digital THI function

-Equipped with TSI (Tissue Specific Imaging) function

-Frequency compound imaging: adjustable under 2D and M modes

-Space compound imaging: adjustable under 2D and M modes with more than 3 levels

"-The scanning modes include 2D (2D ultrasound scanning diagnostic method), M (time motion, M mode diagnostic method), PW

(Pulsed Wave Doppler), CFM (Color Flow Mapping), PDI (Power Doppler Imaging)."

-Different frequencies are selected for 2D image and color image

-Equipped with biopsy guide line, guide by convex probe, transvaginal and linear probe

"-Equipped with bidirectional cine-loop function, gray scale cine-loop no less than 1024 frames, PW cine-loop time is no less than

100 seconds. Automatic/manual playback. The speed of the playback can be adjusted"

-Massive image storage (related with configured hard disk, no less than 500G)

-Equipped with 123 types of body marks; the probe position and scanning direction can be shown with arrow

Digital specification

Optional Probe
