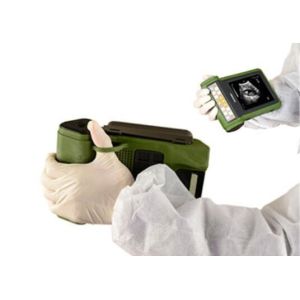

Mini Ultrasound Machine Veterinary Ultrasound Scanner With 6.5MHz Linear Rectal Probe OB Report Available

1. 1.1kg weigh. Smart and light.
2. High-capacity lithium Battery ,more than 6 hours work.
3. sunshine cover, suitable for use in outdoor strong sunshine.
4. Available for left/right hand alternative use, eliminating operate fatigue.

5. Multiple use method: hand-held, chest hanging, back hanging , waist hanging, ect.
6. Optional professional ultrasound goggle, convenient for outdoor use, meet different need.
7. Have soft rubber coat, splash-proof, dust-proof.
8. 2 kinds filter function, 7 kinds compress curve, 100 frames image permanent storage, 256

frames cine loop, Automatically calculate the Back fat and Lean percentage of swine.

1. Adopt 5.7” high resolution LED display, with High brightness, high contrast, wide viewing
angle, suitable for outdoor use
2. English language
3. Single probe socket, auto identify probe
4. Body mark:1.General 2. Bovine 3.Canine 4.Equine 5.Feline 6.Cardio 7. Swine,

total 27 kinds body mark with probe director
5. Display mode:B,2B,4B ,B/M,M
6. Gain:0～127dB
7. Contrast: 27~90dB

8. Gray:256
9. Focus: 1,2,3,4
10. Magnification:0.8,1.0,1.2,1.5,1.6,2.0,2.4,3.0
11. Multi frequency:4 different frequencies of each probe
12. Depth: 8 steps, 240mm,
13. Frame correlation:0,1,2,3
14. IP:0,1,2,3
15. IE:0,1,2,3
16. Character brightness:select between160,192,224,255

17. Key sound: on/off

18. Compressing curve:7 kinds

1. Local zooming
2. Depth hoist
3. Image up/down, left/right, black/white
4. Pseudo color: 8 kinds
5. Four different angles / switchable width ；
6. 100 frames permanent storage
7. Cine loop:256 frames
8. Puncture guide, with two approvable guiding lines whose angle and position can be
adjustable.
9. The gravel software package with real-time position line measurement
10. Normal measurement: Distance, circumference, area (trochoid or ellipse), volume, etc.
11. Cardiac measurement:Depth, slope, heart rate, cycle；
12. OB measurement:Cattle, dogs, horses, pig, cats, goats, camels and sheep

and pre-gestational age birth
13. Back-fat and lean automatic calculation function；
14. OB Report；
15. USB port for large capacity storage

(file management, software upgrade, one-key storage) and laser color printer to

print image & report；
16. With green energy-saving function
17. Grid measurement:6 different

(none,point grid,line grid, 10mm point ruler, 2mm point ruler, 10mm&2mm point ruler)
18. Video output:ＰＡＬ/ＮＴＳＣ
19. Power supply:AC110/230 -15％～＋10％, 60/50Hz±1Hz；
20. Battery:large capacity(5200MAh) battery 1PC, more than 6 hours work
21. N.W.:1.1kg；
22. Dimension:212×154×58mm(L×W×H)

1. Main unit: 1 pc

2. 6.5MHz linear rectal probe : 1 pc
3. Power adapter: 1 pc
4. Internal lithium battery : 1 pc
5. Soft rubber coat: 1 pc
6. Sunshine cover : 1 unit (A,B,C three sections adjustable)
7. Black plastic suitcase : 1 pc
8. Base Charger, belt, probe socket spatula: 1 pc for each.

1. Probe:
4.0Mhz multi-frequency convex rectal Probe
6.5MHz multi-frequency micro-convex probe
3.5MHz multi-frequency convex probe
6.5MHz multi-frequency trans-vaginal probe
7.5MHz multi-frequency linear probe
3.5MHz multi-frequency micro-convex cardiac probe
3.5MHz loin muscle probe
2. Thermal printer (P93W-S)
3. Color laser printer(Specified models:HP Color LaserJet CP1515n,

HP Color LaserJet, CP1525n)
4. Lithium Battery(5200mAH)
5. Leather Case saddlebag
