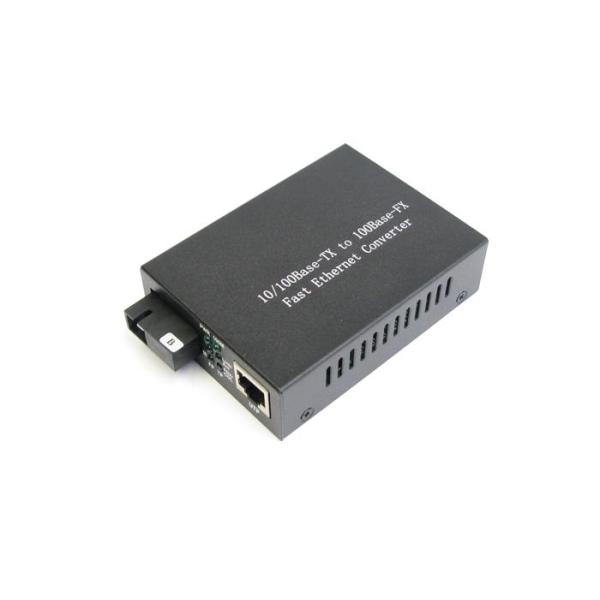

1550nm 10 / 100M Single Mode Optical Fiber Media Converter 20km

Quick Details:

Brand Name: DYS

Model Number: Fiber Converter

band width:1550nm 10 / 100M

Humidity: 5%-95%

Power Loss: <55w

Operating Temperature: 0℃~50℃

Main features

◆The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.

◆Auto negotiation function allows UTP port to auto select 10M or 100M and Full Duplex or Half Duplex

◆The UTP port supports MDI/MDI-X auto crossover.

◆Supporting 1600 bytes packet for management.

◆Internal circuit of prevented thunder could greatly reduce damage of converters caused by thunderbolt induction.

◆Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link.

◆Converter working mode could be chosen: Store and forward switch mode, Modified cut-through switch mode, or Converter mode.

Technical Specifications

◆Operating standards:IEEE802.3u, 10/100Base-TX and 100Base-FX；

◆MAC addresses table: 1K

◆Data buffer: 128K.

◆Connectors: UTP Connector: RJ-45, 10/100Mbps; Fiber Connector: SC, 100Mbps

◆Cable:

UTP: Cat. 5 UTP cable (the max distance up to100m)

Fiber ( Singlemode): 8.3/125, 8.7/125, 9/125, 10/125μm(the max distance up to 90km)

◆Flow Control

Full Duplex: IEEE802.3x

Half Duplex: back pressure

Fiber Optic Information

Order Information

Competitive Advantage

DYS strictly enforce the ISO9001 quality management system, companies with good facilities and qualified human resources management to ensure product quality stability and excellent performance; and good after-sales service, to win the trust of customers, products exported to Europe and the United States and Southeast Asian countries.

Certificate of qualification

Shenzhen DYS Fiber Optic Technology is a leading company in developing and manufacturing advanced fiber optic products，mainly offer fiber optic indoor and outdoor cable, CPRI waterproof jumper, MPO/MTP jumper , standard fiber optic jumper and PLC Splitter. DYS win the the honorary title of National High-tech enterprise by Shenzhen government in 2014.

With years of experiences in the fiber optic industry, our factory is fully equipped over 3500 square meters and more than 32 non dust production lines .About 200 well-trained staff and engineers are contributing to our proud products. We have 4 production lines for fiber optic cable, 2 high standard MPO/MTP jumper assembly lines, 8 production lines for standard jumper and 10 PLC Splitter production lines.

The most advanced imported polishing equipment and testing instruments enable our products have super quality, such as Senko polishing machine, interferometer, automatic cleaning machine and OTDR ,JGR and so on.

All of our optical products are RoHS compliant and DYS also obtained ISO9001, ISO14001 certification. Our high quality products and outstanding service win the customer from all the world, DYS fiber optic is looking forward to cooperate with you.
