Highland HPV90 Manual Control Hydraulic Axial Piston Pumps For
Walking Machinery
HPV90 Axial Piston Pumps Product Description:
Highland hydraulic developed the static hydraulic transmission,
which is designed and manufactured to provide high-quality and
high-performance hydraulic system, axial hydraulic pump, and
hydraulic motor.

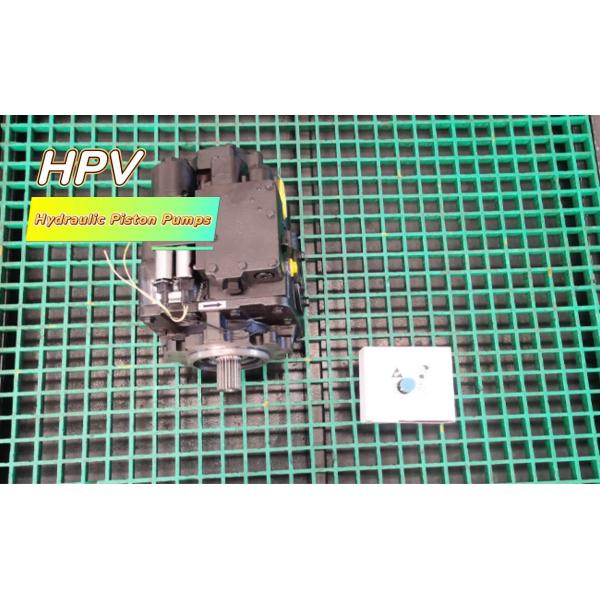

Highland HPV90 hydraulic pump is a variable unit with a charge
pump. The control of the 90ml/r displacement hydraulic pump and
motor can be done manually or hydraulically, allowing for simple
operation in controlling speed, direction and power of the output
shaft of the motor.
Axial Piston Pumps Features:
The main features of the HPV90 hydraulic pump include an axial
variable displacement piston pump with swash plate structure. It is
suitable for hydrostatic transmissions with closed loop circuit.
The pump is equipped with manual servo and hydraulic variable
control, together with a variable displacement pump with a charging
oil pump and a fixed displacement motor with an integrated valve.
It is designed to provide a high-performance, cost-effective
solution for oil and energy saving applications. It can guarantee
the best efficiency with reduced noise level. Its open and
integrated design offers improved cooling, mounting and sealing
flexibility for various applications.
The HPV90 hydraulic pump is a reliable and efficient choice for
those requiring a durable, long-lasting solution for their
hydraulic system.
Manual Control Hydraulic Piston Pumps Technical Parameters:
| HPV Series Technical parameter |
| HPV hydraulic pump and HMF hydraulic motor series | 30 | 50 | 70 | 90 | 110 | 130 |
| Displacement | Max displacement | ml/r | 30 | 50 | 70 | 90 | 110 | 130 |
| Speed | Max continuous working speed
(Full load condition) | r/min | 3500 | 3500 | 3200 | 3200 | 2900 | 2900 |
| Rated speed | r/min | 2500 |
| Min continuous working speed | r/min | 500 |
| Pressure | Rated working pressure | Mpa | 35 |
| Max working pressure (transient) | Mpa | 42 |
| Continuous working pressure | Mpa | 30 |
| Allowable shell pressure (Absolute) | Mpa | Constant0.25, Peak value0.5 |
| Torque | Continuous output torque
(Under continuous working pressure) | Nm | 162.3 | 252.3 | 342.6 | 432.9 | 535.3 | 632.4 |
| Max output torque | Nm | 227 | 353 | 480 | 606 | 749 | 885 |
| Power | Continuous output power | KW | 45 | 79 | 107 | 139 | 149 | 176 |
| Max power | KW | 62 | 95 | 114 | 150 | 173 | 205 |
| Temperature | Allowable shell temperature | ℃ | 80 |
| Max working temperature of oil tank | ℃ | 70 |
| weight | HPV series hydraulic pump hydraulic oil drain | kg | 45 | 46 | 63 | 64 | 82 | 88 |
| HPV series hydraulic motor hydraulic oil drain | kg | 30 | 30 | 36 | 36 | 36 | 38 |
Walking Machinery Hydraulic Piston Pumps Applications:
Our HPV90 hydraulic piston pumps are produced with great care and
craftmanship, boasting reliable quality and punctual delivery. We
will ensure satisfactory service in the selection and utilization
of static hydraulic gearing.
Widely adopted in various kinds of engineering machinery, HPV90
hydraulic piston pumps can be found in agricultural machinery
combine harvester, engineering machinery mixer truck, mining
machinery LHD truck, aviation and transport hydraulic engineering
machinery and other equipment.
Packaging and Shipping for Hydraulic Piston Pumps:
The hydraulic piston pumps are carefully packaged and shipped to
ensure that the product is delivered in perfect condition. The
piston pumps are typically packed in a plywood case with packing
materials such as plastic film to protect the product during
transport. The package is then sealed and marked according to
customer request.
Hydraulic Piston Pumps FAQ:
Q1: What is the Brand Name of the Hydraulic Piston Pumps?
A1: The Brand Name of the Hydraulic Piston Pumps is HIGHLAND.
Q2: What is the Model Number of the Hydraulic Piston Pumps?
A2: The Model Number of the Hydraulic Piston Pumps is HPV90.
Q3: Where is the Place of Origin of the Hydraulic Piston Pumps?
A3: The Place of Origin of the Hydraulic Piston Pumps is China
Shandong.
Q4: What is the Minimum Order Quantity of the Hydraulic Piston
Pumps?
A4: The Minimum Order Quantity of the Hydraulic Piston Pumps is 5
sets.
Q5: What is the Supply Ability of the Hydraulic Piston Pumps?
A5: The Supply Ability of the Hydraulic Piston Pumps is 500
sets/month.
