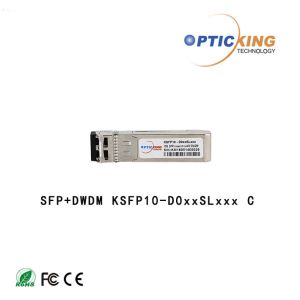

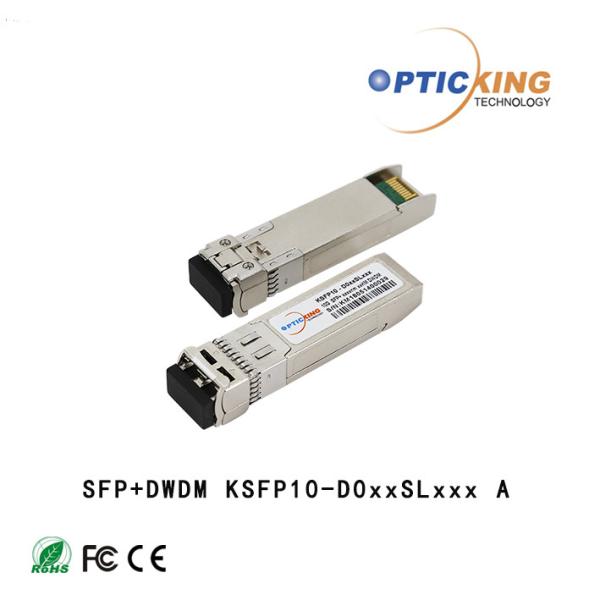

    DWDM Duplex LC 10G SFP+ Transceiver SMF 40km Optical Module

    Ask Lasest Price
    Brand Name : OPTICKING
    Model Number : KSFP08-0085ML03X
    Certification : CE/FCC/RoHS/TUV/UL
    Supply Ability : 15000Piece/Pieces per Month
    Delivery Time : Within 1-8 working days after PO confirmed
    • Product Details
    • Company Profile

    DWDM Duplex LC 10G SFP+ Transceiver SMF 40km Optical Module

    DWDM 10G 300m 850nm SFP+ Transceiver Module

    Description and Reliability

    This OPTICKING transceivers include an APD diode and temperature stabilized DFB-EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 10GHz ITU Grid, C Band DWDM wavelength.

    OPTICKING SFP+ transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.


    Features

    • Class I laser product EN 60825-1-standards

    • Operating data rate up to 11.3Gbps

    • Compliant with MSA SFP+ Specification SFF-8431

    • Duplex LC connector

    • Hot pluggable

    • 3.3V single Power supply

    • TTL singal detect indicator

    • Operation Temperature Range : X means C( 0~70°C) ; I(-40~85°C).

    • RoHS-6 Compliant


    Ordering Information

    ProductNumber

    Wavelength

    Data rate

    Distance

    TX Power

    RX Sens

    LD

    PD

    DDM

    KSFP10-D0XXSL40X

    DWDM(note2)

    10Gb/s

    40KM

    -3~+3dbm

    <-16.4dbm

    DFB

    PIN

    YES

    KSFP10-D0XXSL80X

    DWDM(note2)

    10Gb/s

    80KM

    0~+4dbm

    <-24dbm

    EML

    APD

    YES

    Notes:

    D0xx refers to DWDM Wavelength channel as ITU-T specified, please contact Opticking to confirm the wavelength availability.
