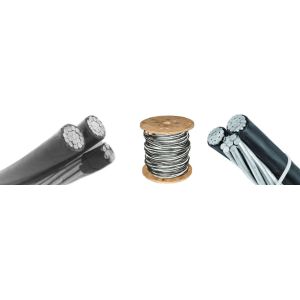

Triplex Service Drop Cable has an aluminium conductor with a XLPE
sheath. ABC usually has 3 cores plus neutral, the neutral can
either be bare or insulated and the cable can have a street light
of 25mm². ABC is available in 600/1000v, 635/11kV or 12,7/22kV. We
stock 1 core, 2 core and 3 core ABC cable.
2. construction:
A concentric strand or compressed 1350-H19 conductor, poly-
ethylene or cross linked polyethylene insulation,concentric strand
AAC, ACSR or 6201 alloy neutral messenger.
3.type of XLPE(PE) insulated abc cable (service drop)
XLPE(PE) insulatedabc cable (service drop)covers mainly three
types:
Duplex Service Drop
Triplex Service Drop
Quadruplex Service Drop
The cable can be produced whose construction is phase conductor
with neutral bare conductor or phase conductor with insulated
neutral conductor , etc. And we can still produce the cables
according to the request of customers.
4.Detaild Introduction of XLPE(PE) insulated abc cable (service
drop)
3.1 Duplex Service Drop
Applications
To supply 120 volt aerial service for temporary service at
construction sites,outdoor or street lighting . For service at 600
volts or lower at a conductor temperature of 75 maximum.
Construction
Concentic strand or cmpressed 1350-H19 conductor , polyethylene or
cross linked polyethylene insulation, concentric strand AAC, ACSR,
or 6201 alloy nertral messenger.
3.2 Triplex Service Drop
Applications
To supply power from the ulility`s lines to the consumer`s
weatherhead. For service at 600 volts or less(phase to phase ) at a
conductor temperature of 75 maximum for PE insulation or 90 maximum
for XLPE insulation .
Construction
Concentic strand or cmpressed 1350-H19 conductor , polyethylene or
cross linked polyethylene insulation, concentric strand AAC, ACSR,
or 6201 alloy nertral messenger.
3.3 Quadruplex Service Drop
Applications
Used to supply 3 phase power , usually from a pole-mounted
transformer to the use`s servic head where connection to the
service entance cable is made . To be used at voltages of 600 volts
or less phase to phase and at conductor temperature not to exceed
75 for PE insulated conductors or 90 for XLPE insulated conductors.
