Internal Bevel Helical Gear Ring And Pinion Gear Manufacturers

Internal Bevel Gear Internal Helical Gear Ring And Pinion Gear Manufacturers

With years of rich industry experience and knowledge, we are specialized in manufacturing and supplying high quality large gear. Manufactured to defined industry standards, these compact and rugged gears feature standard operating speeds and torque measurements. The range offered is widely recognized for features such as optimum performance, rugged construction and longer life. These precision engineered gears are widely required in different industries.

Guangda has professional large gear equioment for the large diameter gears and could provide different kind of internal gears ,external gears ,bevel gears ,spur gears of mas diameter of 5000mm .With the most advanced and modern equipment of PAMA ,Gleason ,Danobat,Kehren, Nicolas,Pierto carnaghi of precision machining including gear shaping ,gear hobbing, gear grinding etc.

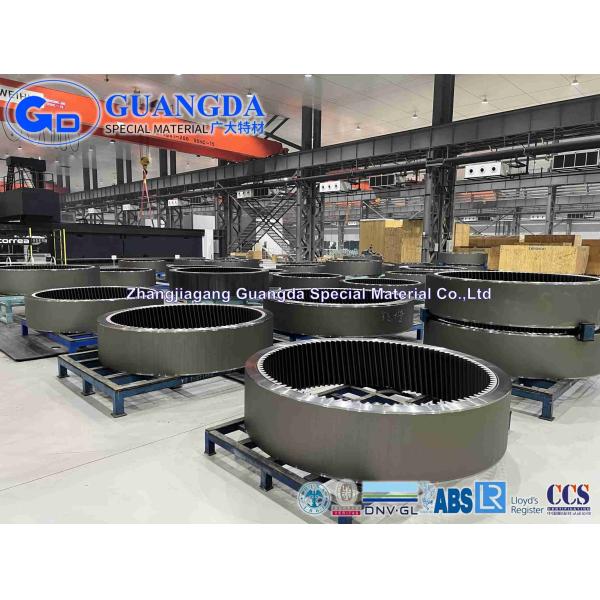

Large ring gear specification

Precision gears types

	Planetary Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Internal Gear Planetary gears, also called epicyclic gear trains, are used in complex applications that require smooth torque transmission, such as drivetrains and automotive transmissions. The spur gear used by planetary gears is called a “sun spur,” which is surrounded by three-plus exterior gears called planet gears
	Spur Gear The spur gear, also called a straight-cut gear, is the simplest type of gear available. Straight-sided along the gear wheel’s axis, with straight teeth in line with the axis. Other types of spur gears transmit motion and torque laterally through compatibility with other parallel aligned gears. Such gears are main components in planetary gears.
	Spline Gear Spline gears are either cylindrical or rod-shaped with straight teeth that allow them to transmit motion laterally by fitting inside internal devices or gears.
	Helical Gear Helical gears are fast rotating gears capable of supporting heavy loads efficiently and smoothly. They feature teeth inclined towards the axis of the shaft and positioned like a helix, thus the name. Quieter than many other gears, including spur gears, helical gears are popular with applications that feature both radial loads and thrust loads.
	Double helical gear Double helical gears are a type of helical gear that has two helical faces next to each other with a gap between them. The helix angles on each face are identical but opposing. The use of a twin helical gear set lowers thrust loads and allows for even more tooth overlap and smoother operation.

Core advantage for the precision gears

Completed supply chain--Guanda has the ability from Material of smelting ,forging ,heat treatment to the precision machining and the final surface treatment.

Comparing with companies who only make the material , we directly face the end customers and better understand customer's demand. Compared with comapanies who only do the processing, we can accurately control the quality of materials to meet the technical requirements of customers. In this way we could provide a holistic solution and control the cost of the whole process, meet the delivery time, and resist market risks.

About Guangda

1.Professional manufactuer for the gears with efficient technical team with an emphasis on cost effective production.

2.Guangda has material line and machining line could provide gear blanks and finished gears .

3.Customerized and one-stop to meet customer's requirements, provide the overall solution to customers .

4.More than 100 sets of professional gear machining equipment including PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi of the most advanced equipment in the world.

5.More than 70 sets of the gear heat treatment equioments including the nitriding ,tempering and carbonization for the gears .

6.Guangda is the largest supplier to the world's top three customers NGC,ZF and Siemens for the gear box parts.

7.In Chinese market, Guangda wind turbine gear steel ranks first in China for the capacity, quality and market share.

Internal Bevel Gear

Internal Helical Gear

Ring And Pinion Gear Manufacturers

Zhangjiagang Guangda Special Material Co.,Ltd was established in 2003.  We located in Jiangsu Province beside Shanghai. Act as the high-tech enterprises with high-quality special alloy materials as the core business belong to the "advanced iron and steel materials" industry under the strategic emerging industries supported by the state.

 1. Headquarter Zhangjiagang 220.000㎡                                   2. Rugao Base 420.000㎡

 3. Zhangjiagang Precision Manufacturing Base 200,000㎡     4. Deyang Base 350.000㎡

Guangda Main products.

1. Material :
Gunagda has formed more than 10 core technologies in material melting technology and has internationally advanced heat treatment production lines from smelting and forging. Annual capacity for high quality alloy ingot 500,000 tons .Guangda provide high quality gear steel, high quality die steel, special stainless steel, high temperature alloy, ultra-high strength steel and other new material products encouraged by the state.

2.Forgings:
Guangda provide different forgings of shaft ,gear blank , ring rolling, rough machining, heat treatment and finish machining. Our annual production capacity is 500,000 tons for various of free-die forgings, ring rollings .Guangda forgings are widely used in high-end equipment manufacturing industries such as new energy wind power, rail transit, mechanical equipment, aerospace, new energy power, gas turbine, Marine petrochemical, semiconductor chip equipment and so on.

3.Castings:
Our business mainly focuses on large casting equipment, and our products mainly include large wind turbine castings, large equipment and equipment castings, large plastic machinery castings, and large shell castings with a total annual capacity of 210,000 tons. We have formed a whole industrial chain of smelting, casting, machining and surface treatment, and our technology and cost control are leading in the world.

4.Precision machining parts:
Through continuous and high starting point technical transformation. Guangda has introduced world-class high-precision equipment for the gears manufacturing, established a complete quality management system and after-sales service network, and dedicated itself to providing users with high-quality products. Quality products and satisfactory service.​All products are manufactured with the most advanced and modern equipment of PAMA,Gleason,Danobat,Kehren,Nicolas,Pierto carnaghi and efficient technical team with an emphasis on cost effective production.Guangda pursues excellence & innovation with tight quality control & the most advanced technology in the industry.
