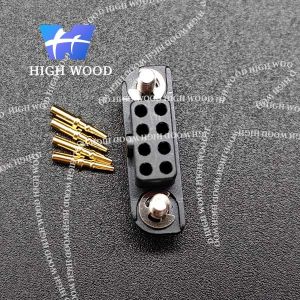

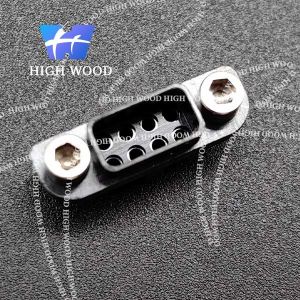

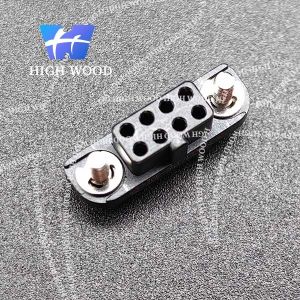

    HW-CMM Connector, HW-222C08M16,MTL-55302F,2mm Pitch.

    Ask Lasest Price
    Brand Name : HIGH WOOD
    Model Number : HW-222C08M16
    Certification : AS9001
    Price : 10$--150$
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 100,000pcs per month
    Delivery Time : 2--9 weeks
    • Product Details
    • Company Profile

    HW-CMM Connector, HW-222C08M16,MTL-55302F,2mm Pitch.

    HW-222C08M16:
    The CMM has been developed for the aerospace,avionics,instrumentation & control,defence and transportation markets,with applications that induce IFES,HUDs,fight controls,FADEC units,radars,missiles, electro-optical sighting systems,satellites,mobile radios,power supplies,UAVs and engine controls.It is also used engine controls.It is also used in a growing number of medical.



    Part numbering:

    TypeL
    S24-28
    C22


    FIXING HARDWARE FOR CMM 220 FEMALE

    REFERENCASSEMBLY ON PCBOVERALL DIMENSIONSRECOMMENDATION

    M16

    M16 :
    CMM Female :
    Y-YL-T-S-C-E
    (D :straight)


    MALE STRAIGHT ON CABLE P/N 30-33xx (solder or crimp):

    LoadedUnloadedAmpereCable AØBØCLength D holeLength E bodyLength F conductorSolderCrimp by HX3 Hexagone size/DiesCrimp by AF8
    AWG 20AWG 18AWG 16AWG 14AWG 12
    330530-33055A×1,1mm

    1,65
    mm

    6,2mm6,7mm4,5mmOKHex.1,9 mm/C14923OK
    330830-33088A×1,35mm

    1,85
    mm

    6,2mm6,7mm4,5mmOKHex.1,9 mm/C14923OK
    331030-331010A×××1,7mm6,2mm6,7mm6mmOKOK
    331530-331515A×2mm6,2mm6,7mm6mmOKOK
    332030-332020A×2,6mm6,2mm6,7mm5,3mmOKOK

    Materials and coating:

    Materials and coating
    Insulating medium

    Glass fiber reinforced PPS, UL94-V0

    Radiation resistant, non hygroscopic, ozone resistant

    ContactCopper alloy nickel base plating
    Enclosurestainless steel
    Electrical performance index
    Voltage withstand test (sea level)800V AC/DC
    Insulation resistance≥1000MΩ
    Rated current

    LF contact: working current 25 C, ≤ 3A;

    Working current 85 C, ≤ 2.2A; contact resistance ≤10mΩ

    Mechanical performance index
    Mechanical life500 times of plugging and unplugging
    Environmental performance index
    Operating ambient temperature-60℃ to 260℃

    1. The contacts are distributed, and it is recommended to crimp the AWG22 wire for LF contacts;

    2. After LF contact is pressed into the base with special tools, it is recommended to use the heat shrinkable

    sleeve

    shrinks

    its tail and fills the base cavity with glue;


    Product details:


    Materials and coating:

    Materials and coating
    Insulation mediumGlass fiber reinforced PPS,UL94-VO Radiation resistant,non hygroscopic,ozone resistant
    ContactLF contact copper alloy nickel base plating gold 0.8μ
    EpiphyStainless steel
    Electrical performance index
    Voltage withstand test(sea level)600V AC/DC
    Insulation resitance100m
    ContactSignal contact:working current 25*C,3A,working current 85C,2.2A,contact resistance10m
    Mechanical performance index
    Mechanical life500 times of plugging and unolugging
    Single core insertion and extraction force of contactLF contact:insertion force2N,pull-out force0.2N
    Retention Force in contact bace10N
    Environmental performance index
    Operating ambient temperature60℃-260℃
    Vibrating level0.75mm, 10G (root mean square) random vibration superimposed with sinusoidal vibration, 6 hours, instant break less than 2 nanoseconds
    lmpact grade100G, 6 ms
    Salt resistanceHcFc 141 bMGX (ATOCHEM) solvent
    Salt spray test96h

    Moisture

    resistance

    56 days, 90% humidity

    Product display:
