    DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V

    Ask Lasest Price
    Model Number : DC 400W, 400W 15A
    Brand Name : CREATALL
    Supply Ability : 100000 Piece/Pieces per Day
    Price : negotiable
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    DC 400W 15A Power Supply Module Step Up Boost Module 8.5-50V To 10-60V

    DC 400W 15A Step-up Boost module 8.5-50V to 10-60V Voltage Charger power supply module


    Product Description:


    • module name : 400W boost constant current module
    • module nature : non isolated boost module ( boost )
    • Input voltage : dc8 . 5v-50v
    • Input current : 15A ( max ) over 8a , please strengthen heat dissipation
    • Static working current : 10MA ( when 12V rises to 20v , the higher the output voltageis , the higher the static current will be)
    • Output voltage : 10-60v continuously adjustable
    • Output current : if 12a Max exceeds 7a , please strengthen heat dissipation ( it is relatedto input and output voltage difference , the larger the voltage difference , the smaller theoutput current )
    • Constant current range : 0. 2-12a
    • Output power :=input voltage * 10a 10 . For example : Input 12V * 5A= 60W , input 24V * 5A=120w
    • Input 36V*5A= 180W , input 48V * 5A=240W
    • Working temperature : -40~+85℃ ( please strengthen heat dissipation when the ambient temperature is too high)
    • Working frequency : 150KHz
    • Conversion efficiency : up to 96 % ( efficiency is related to input and output voltage , current and voltage difference )
    • Over current protection : Yes ( if the input exceeds 15a , the output voltage will be automatically reduced , and there is a certain range of error .)
    • Input reverse connection protection : none ( if more reverse connection current is neede . please connect diode in series with input )
    • Installation method : four 2 . 5mm screw holes

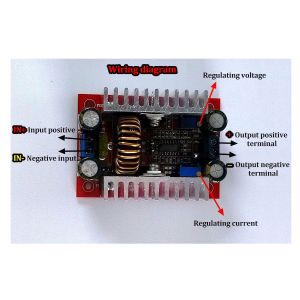

    • Wiring mode : wiring output
    • Module size : length 67mm * width 48mm * height 28mm
    • Module weight : 60g
