    41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine

    Ask Lasest Price
    Brand Name : Casun
    Model Number : P35SHD4807-16B
    Certification : CE,ROSH,ISO
    Price : $4-$7
    Payment Terms : D/A, T/T, L/C, D/P
    Supply Ability : 40000+PCS+Month
    Delivery Time : 7-15 days
    • Product Details
    • Company Profile

    41mm Length Mini Step Motor Nema14 35x35x41mm 180mN.M For Medical Machine

    Casun Mini Step Motor Nema14 35x35x41mm 180mN.M Stepper Motor For Medical Machine


    35x35x41mm 0.5A Casun Stepper Motor Nema 14 Mini Stepper Motor For Medical beauty equipment

    Nema 14 Casun Stepper Motor 2 Phase 180mN.m 0.5A 35x35x41mm Stepping Motor for Medical machine



    Motor Specifications

    Step Angel

    1.8 °

    Fram Size

    35 mm

    Number of Phase

    2 Phase

    Rated Current

    0.5A

    Holding Torque

    180 mN.m

    Resistance

    100ohm

    Inductance

    5.8mH

    Rotor Inertia

    35g-cm²

    Motor weight

    0.15 kg

    Number of leads

    0

    Connection

    Bipolar


    Appearance

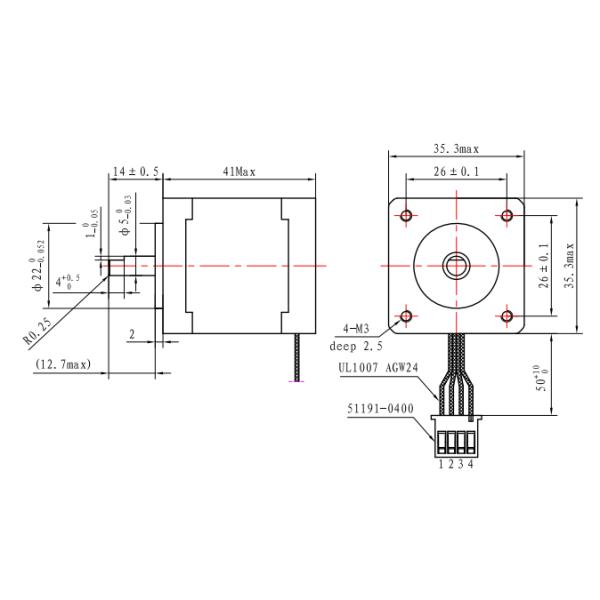

    Dimensions


    The Nema 14 Casun stepper motor you mentioned is a specific model of stepper motor manufactured by Casun. Here are the specifications you provided:

    Motor Type: 2-phase stepper motor
    Torque: 180mN.m (millinewton-meter)
    Current: 0.5A (Amperes)
    Dimensions: 35x35x41mm (width x depth x height)

    This particular stepper motor is designed for use in medical machines, which suggests it may be used in applications where precise and controlled movements are required. Stepper motors are commonly used in various industries and applications, including robotics, automation, 3D printers, and CNC machines.


    Download


    If our standard motor cannot meet your needs,

    we can customize the motor according to your needs


    Customized content includes but is not limited to special shafts, winding parameters, installation dimensions, lead wires with special requirements, connectors, etc.

    Options:
    Encoder | Brake | Gearbox | Connector
