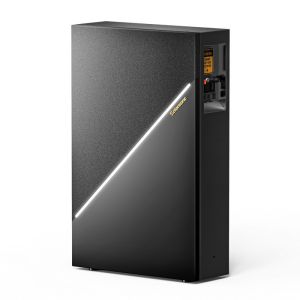

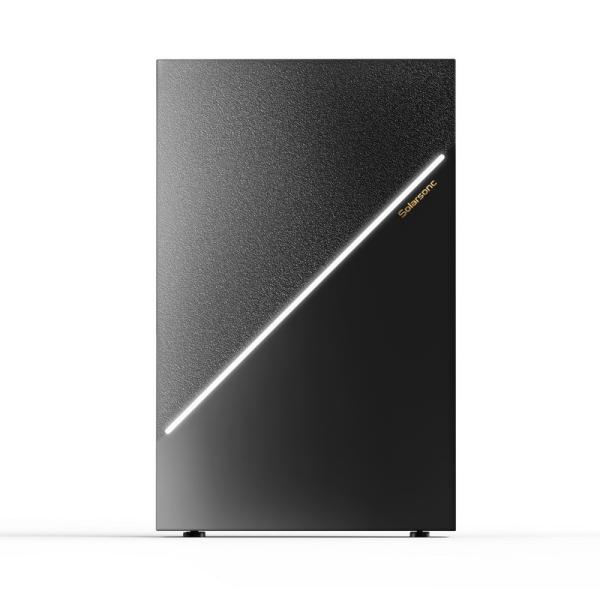

10kw Wall Mounted Battery Storage Bess Energy System
1. Using liFePO4 battery cells,low internal resistance,and long
service life.
2. Itelligent system, low loss,high conversion
rate,strongstability, and reliable operation.
3. 3 layer BMS sytem management,monitoring and management of the
whole system.
4. Using Grade A battery clls, with high cycle times, long service
life, low overall operating costs. 5.LCD display screen, operate
parameters setting, data check in real-time. 6.Integrated design,
simple itsalltion, plug and play.
| GENERAL CHARACTERISTICS | | | |
| Cell Technology | | LiFePO4 Cylindrical Full Tabs Cell | |
| Rated Capacity [KWh] | 5.7 | 8.6 | 11.4 |
| Usable Capacity [KWh] | 5.1 | 7.7 | 10.3 |
| Nominal Voltage [V] | | 51.2 | |
| Operating Voltage [V] | | 40-57.6 | |
| Dimensions (W*H*D) [mm/inch] | 480X240X680
19x9.4x26.7 | 480X240X930
19x9.4x36.6 | 480X240X1210
19x9.4x47.6 |
| Weight [kg/Lb] | 60/132 | 85/187 | 115/253 |
| Recommend Discharge Current [A] | 100 | 150 | 200 |
| Peak Discharge Current [A] | 200 | 300 | 400 |
| Battery Pack Round-Trip Effificiency | | >95% | |
| Depth of Discharge | | 90% | |
| Cycle Life | | ≥6000 cycles, (25°C/77°F) | |
| Warranty | | 10 years | |
| Communication | | CAN | |
| Scalability | | Max. 4 Modules in Parallel | |
| Certificates | | CE/IEC62619/UN38.3 | |
| | UL 1642 | |
| | | | |
| OPERATING CONDITIONS | | | |
| IP Level | | P20/IP65 | |
| Operating Temperature [°C/°F] | | -20°C ~ 45°C / -68 ~ 113 | |
| Storage Temperature [°C/°F] | | -45°C~70°C / -113℉~158 | |
| Cooling Method | | Natural Convection | |
| Humidity | | 0% to 100% (No Condensing) | |
| Altitude [m] | | Max. 3,500 | |
| Installation Mode | | Wall-mounted/Floor-Mounted | |
| *1 77, @90% DOD, 0.5C charging | | | |
FAQ
Q1. Can I have a sample order?
A: Of Course, we welcome to place sample order even we can help you
customized your sample according to your requirements.
Q2. What about the lead time?
A:Sampleusually needs10-15 days, mass production time needs 4-5
weeks, it depends on order quantity and battery requirement.
Q3.How can guarantee quality?
Always a pre-production sample before mass production; Always final
Inspection before shipment.
Q4. What is the order procedure?
Step 1: Receive Customer requirements
Step 2: Offer solutions accordingly
Step 3: Sample order placement and Quality confirmation from
customer side
Step 4: Batch order with after sales service
Q5. Do you offer OEM and ODM solutions?
A:Yes, we do offer OEM and ODM solution based requirements. Under
OEM terms we can place customer’s brand logo on the product. MOQ is
very small for OEM service, Please consult us before placing the
order.
Q6. Are you a manufacturer or a trade company?
A: We are a manufacturer, specialize in making ESS with Lithum
Battery, BMS, LifePo4 Battery PACK and LFP Lithum cells.
Q7. How much is the freight cost of samples?
A: It’s depends on weight, packing size and destination. Please
contact us if you need, we can get the quote for you.
Q8. What is the shipping method?
A: It could be shipped by sea, by air or by express
(EMS,UPS,DHL,TNT,FEDEX and etc.)Please confirm with us before
placing orders.
Q9. What is the payment terms?
A: T/T,L/C,Western Union is available. Please contact us.
Q10. What is the payment condition?
A: 30% deposit to confirm the order,70% balance before the
shipment.
Q11. what can you buy from us?
BESS Battery/Residential BESS/All In One ESS/Wall Mounted Battery
Storage/Commercial Battery Storage Systems/12V Lifepo4
Battery/Lifepo4 Portable Power Station/Lifepo4 Battery
Module/Lifepo4 Battery Cell/Dc Ev Charger/Ac Ev Charger/Single
Phase Hybrid Solar Inverter.
