Product Description

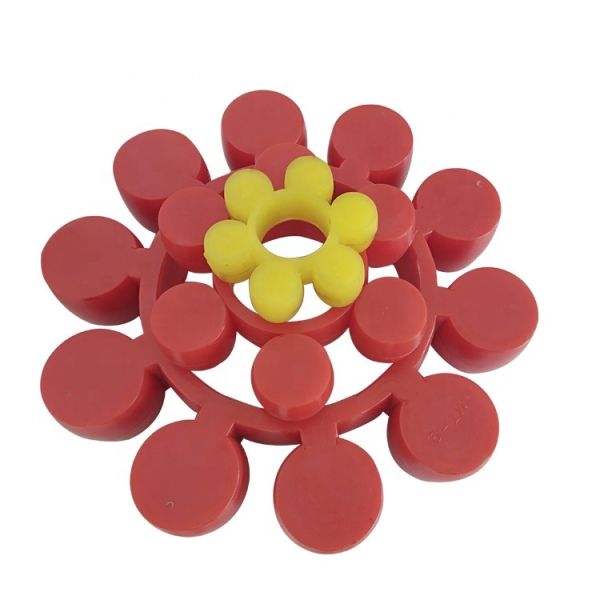

Parameter Of MT Type PU Rubber Element For Flexible Coupling
The plum blossom pad of the coupling is used in the middle of the
coupling to play the role of shock absorption, insulation and
buffering to transmit torque. The torque transmitted by the plum
blossom pads of different materials and different hardnesses is
also different. Below is a list of the model specifications of the
MT plum blossom cushion.
Polyurethane plum-shaped elastomerMainly used in automotive industry steering gears, lifters, shock
absorbers, brake pads and oil seal accessories, and valve industry
packing, valve seats, gaskets, O-rings, and polyurethane elastomers
can also be used with hydraulic cylinders in the hydraulic
industry. Air valve, electric valve and solenoid valve are used
together.
Product Usage:
This standard applies to the coupling of large equipment and
various mechanical buffers acting on the drive shaft.
Torque: 22.4—2500NM
Wear: <0.05cm3 / 1.61km
Product hardness: 95A ±5
Standard: GB5272-85
Specification: MT1—MT14
Elastic parts: a is polyester polyurethane (UR) orange b is cast
nylon (PA) red
Color | red |
Product Features | damping |
Craft | hot forming |
Shape | round |
Material | PU |
Working Temperature | -40℃~100℃ |
Hardness | 90~96shore |
Max Pressure | 40MPa |
OEM | accept |
Capacity | 10000pcs per day |
| model | specification |
| Outer diameter (D) | Inner hole diameter (D) | Thickness (n) | 瓣数 |
| MT1 | 48 | 19 | 12 | 4 |
| MT2 | 58 | | 16 | |
| MT3 | 68 | 28 | 18 | 6 |
| MT4 | 82 | 34 |
| MT5 | 100 | 42 | 20 |
| MT6 | 122 | 52 | 25 |
| MT7 | 140 | 65 | 30 |
| MT8 | 166 | 90 | 8 |
| MT9 | 196 | 100 | 35 |
| MT10 | 225 | 115 | 10 |
| MT11 | 255 | 140 | 45 |
| MT12 | 295 | 170 | 50 |
| MT13 | 356 | 215 | 55 | 12 |
