    10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise

    Ask Lasest Price
    Brand Name : DB
    Model Number : YX30-200-2000
    Certification : CE.SGS.ISO9001
    Price : US $15,000 - 40,000 / Set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 Set/Sets per Month
    Delivery Time : 3o to 50 Days After Receiving the Deposit
    • Product Details
    • Company Profile

    10m / Min Working Speed Roof Panel Roll Forming Machine Low Noise

    Full Automatic High Speed Guard Pin Gear Box Foof Tile Roll Forming Machine


    Profile Drawing



    Working Flow



    A.Main Data


    1)Main motor power: 5.5kw
    2)Drive: gear box
    3)Main shaft dia: 76mm material: 45 forge steel and quenched
    4)Roller material: 45# forge steel ,chrome coated 0.05mm
    5)Roll station: 20 steps
    6)Type of forming machine: roof panel
    7)Raw material: GI steel 0.3-0.8mm
    8)Width of feeding material: 1250mm
    9)Working speed: 10-15m/min(Exclude cutting time)
    10)Length Tolerance: ±1.5mm
    11)Weight of machine: about 5ton
    12)Size of machine: About 7500×1800×1500mm L x W x H
    13)cof machine: yellow and blue
    14)Coder: Omron, made in Japan
    15)Control: PLC Panasonic, made in Japan. 380V 50HZ(Also depend on customer requirement)
    16)Computer operating panel: touching screen
    17)Cutting: Hydraulic cutting
    18)Auto cutting when reach the set length. Hydraulic power: 3KW
    19)Blade material: Cr12,quenched 55°-58°
    20)Working pressure:16mpa


    B. Manual Decoiler
    1)Capacity: 5ton
    2)Feeding width: MAX 1250mm
    3)Expanding range: 480-520mm


    C. Passive Output Table
    1) Valid length: MAX 4m
    2) Capacity: 3ton
    3) Max loading height: 100mm
    4) Transport: by roller passively


    Character of Main Structure:


    a) The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and most of the connectors are screw which make the machine flexible and stronger.
    b) All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
    c) We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
    d) It is very easy to install the equipment and suitable for producing in the factory.
    e) Low noise with high efficiency.

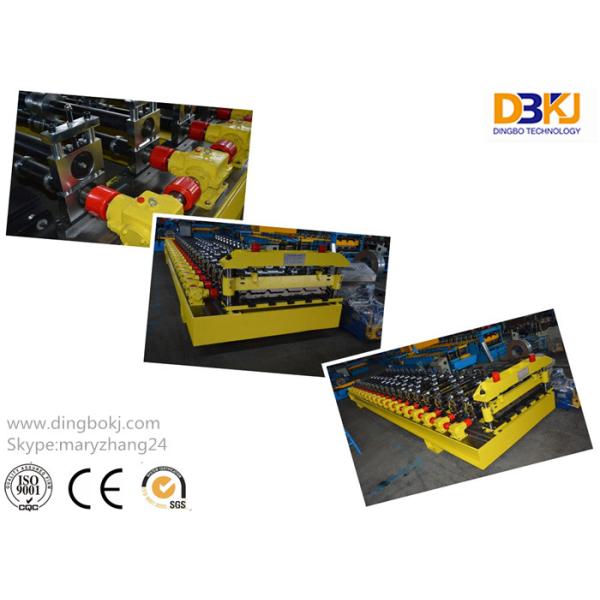

    Photos for Refer:
