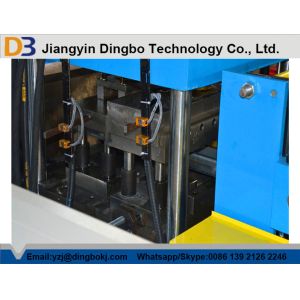

    Galvanized Steel Sheet Stud And Track Roll Forming Machine For Vacationlands

    Ask Lasest Price
    Brand Name : DB
    Model Number : Cold Rolling Mill
    Certification : ISO;BV;CE;SGS
    Price : US $15,000 - 40,000 / Set
    Payment Terms : L/C, Western Union, T/T
    Supply Ability : 10 Set/Sets per Month
    Delivery Time : 30 ~50 Days After Receiving the Deposit
    • Product Details
    • Company Profile

    Galvanized Steel Sheet Stud And Track Roll Forming Machine For Vacationlands


    High efficiency C purlin cold


    roll forming production line machinery


    with Top Serivice and Fast Supplier


    The profile drawing


    The thickness of Material: 2.0-3.0mm

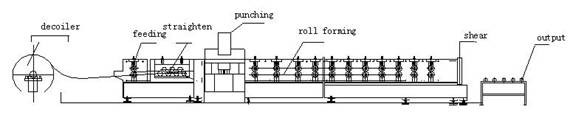

    Working flow



    Main Specification


    Manual uncoiler
    Capacity5ton
    Feeding widthMAX 600mm
    Expanding range460-520mm

    Main roll forming system
    Main motor power15kw
    Main shaft dia76mm material: 45forge steel and quenched
    Roller materialGcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm
    Roll station12 groups
    Raw materialGalvanized steel 2.0-3.0mm thick
    Width of purlin100-300mm adjustable
    Working speed10m--15m/min(Exclude cutting time)
    Weight of machineabout 6ton
    Size of machineAbout 9500×1000×1500mm L x W x H
    Color of machineup to you
    CoderOmron
    OmronPLC Panasonic, made in Japan. 380V 50HZ, 3 phases
    Computer operating paneltouching screen
    PunchingHydraulic punching before roll forming
    CuttingHydraulic cutting after roll forming, cutting when reach the set length.
    Hydraulic power5.5KW
    Blade materialCr12,quenched 58°-62°
    Working pressure20mpa
    Cutting tolerance+/- 1.5mm
    Random3 pieces of cutters

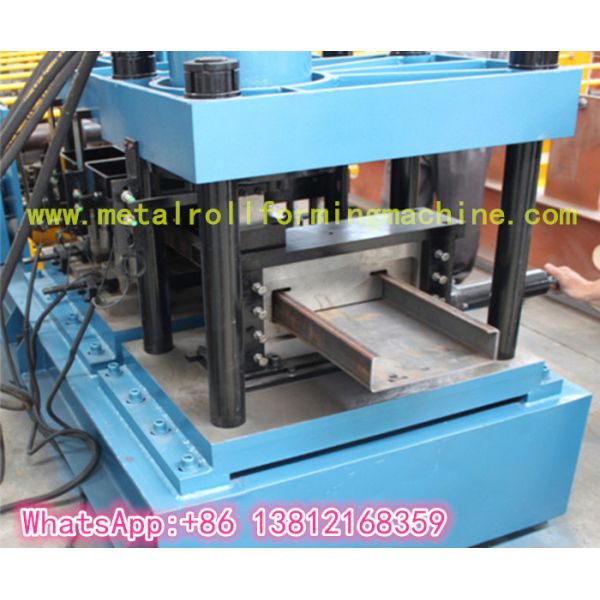

    Picture Presentation




    Guarantee


    1.A year free guarantee after the product is shipped.
    2.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    3.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.



    After Sale Service


    1.Engineer will give free training lessons to labors in buyer’s factory.
    2.The Buyer will buy the round-trip air ticket for Engineer if visa application is approved. The buyer is also responsible to bear expenses generated, e.g. visa formalities, meals, accommodation and allowance of USD80 for engineer.
    3.During this guarantee period, we will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations, we will provide the buyer spare parts at cost price.
    4.We will charge the buyer cost price of spare parts beyond one year and provide long-term technical guide.


    FAQ:


    A:- What service can you provide before order?
    - About the pre-sale service. We provide you answers of all your questions on our machines, such as technical parameter, price, payment terms, ect. If you wanna visit our factory and check the machines, we also can send you invitation letter and give you our warmest welcome.

    B:- Can you finish the machine during the delivery time?
    - We will finish the machine in time according to determined lead time.

    C:- Can you provide some spare parts?
    - Yes, of course. The quick-wear parts are sent to you together with the machine.

    D:- What is the after- sale service?
    - About the after-sales service. We can send technician to your country to fix the machine. The buyer should bear all the cost including: visa, Roundtrip ticket and suitable accommodation, also buyer should pay the salary 80USD/day.
    The warranty is one year. and we will provide the technical support for the whole life. It is free to maintain the machine the first year after buying, including changing the main components. The first year hence, you will pay for our technician $100 per day to maintain the machine. And the components are not free, if you need to get it from us.

    E:- Any other service?
    - We can manufacture, design, installation and debug various roll forming machines including standard and customized machines.
    It is free to assemble machine and train your workers, but the buyer should pay for the round-trip airplane ticket, and arrange accommodation during that time.

    F:- Can you accept OEM?
    - We can accept OEM.

    G:- Do you have any certifications?
    - Yes, we have CE SGS and ISO.

    H: -How does your factory do regarding quality control?
    -Quality is priority. We always attach great importance to quality controlling from the very beginning to the end. Each part of the machine components are strictly processed by advanced machine tools and experienced staffs. Every machine element is checked and inspected by our QC. Each machine before delivery shall test run and be well checked.
