| Brand Name : | DINGBO |
| Model Number : | DBRF |
| Certification : | CE ISO |
| Price : | USD49000-51000/set |
| Payment Terms : | T/T, L/C, Western Union |
| Supply Ability : | 20sets/month |
| Delivery Time : | Shipped in 30-70 days after payment |
Product Description

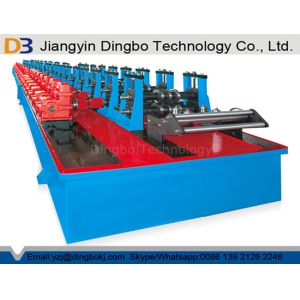

This Rack Upright Roll Forming Machine is consisted with
auto-de-coiler, guide frame, lever/feeding section, continuous hole
punching section, forming section, positioning and cutting section,
collection table and electrical control system etc. All kinds
of roll forming machine can customized, so just send your profile
drawing to me.
Technical Data
| Material of coil | Items | Specifications |
| Material | Galvanized steel/Black steel | |
| Material Width | As per sketch | |
| Size | Customized | |
| Material Thickness | According customer | |
| Uncoiler | 3T manual | |
| Leveling & Servo Feeding | Rollers | 3roller up, 4rollers down |
| Feeder power | 1.1Kw | |
| Hydraulic punching device | Hydraulic power | 7.5KW |
| Punching type | Hydraulic punching | |
| Punching Moulds | 2sets | |
| Mould material | Cr12Mov | |
| Forming system | Line Speed | 4-6 m/min |
| Roller Stations | 16stations | |
| Roller Material | Gcr15, quenching, HRC55-58° | |
| Shaft Material | 45#steel | |
| Shaft DIA | 70mm | |
| Main Motor Power | 22 kw | |
| Structure | Wall plate | |
| Way Of Drive | Chain | |
| Hydraulic Cutting system | Blade material | Cr12Mov |
| Tolerance | +-1.5mm | |
| Hydraulic Power | 5.5KW | |
| Electrical control system | PLC | Panasonic |
| Electric Source | 380V, 50HZ,3 phase | |
| Encoder | Omron |
Main Items
| No. | Name | Qty(set) |
| 1 | Manual Uncoiler | 1 |
| 2 | Leveling & Servo Feeding | 1 |
| 3 | Hydraulic punching | 1 |
| 4 | Main Roll Forming Machine | 1 |
| 5 | Hydraulic Cutting | 1 |
| 6 | PLC control box | 1 |
| 7 | Output Table | 2 |
1.Rack upright roll forming machine



2.Box beam roll forming machine



3.Pallect Rack step beam roll forming machine



|
