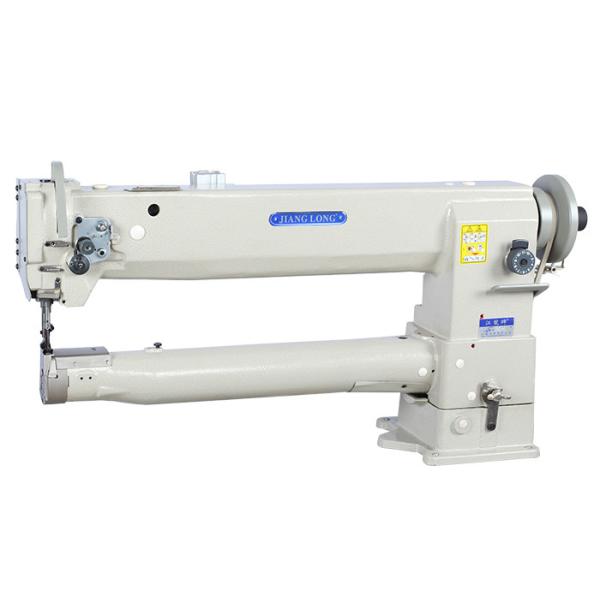

Single Needle Long Arm Compound Feed Industry Thick Material Sewing
Machine
Product introduce
This is an extended sewing machine, a customized model, suitable
for sewing special materials. The arm length can be selected in

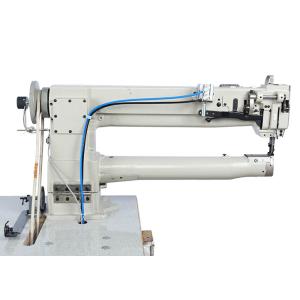

sizes (450mm, 500mm, 600mm, 800mm, 1000mm). Pneumatic presser foot
lifting device, servo motor, automatic The presser foot is lifted
and the needle is automatically fixed up and down.
Product advantage
The fully automatic circulating oil supply and lubrication design
greatly reduces the wear of parts and reduces sewing noise. Super
10mm large stitch length design, precise selection of parts and
materials, adopting adjustable new tooth frame, durable.
Parameter of machine
| Model | JL-1341C |
| Number of Needle | Single Needle |
| Max. Sewing Speed | 2200(r.p.m) |
| Max.Stitch Length | 0-10.5mm |
| Diameter of Cylinder Bed | 70mm |
| Presser foot lift | 8 mm (by hand) 13 mm (by knee) |
| Needle size | DP*17(21#) |
| Hook | Vertical/Standard hook (26.4mm core) |
| Lubrication | Automatic lubrication |
| Working Space | 600/800/1000*110mm |
| motor | Clutch Electric Motor, Electronic Energy-saving Machine(Including
with Fixed Needle, Adjustable Speed) |
| Mechanical Configuration | Cylinder-bed |
| Feed Mechanism | Compound Feed |
| Dimensions | Customized |
| Color | White |
| N.W | Customized |
Application case
suitable for sewing leather goods, handbags, luggage, hats,
clothing, shoes, etc.
Product details
1. The automatic circulation oil supply device is an improved
version based on traditional manual oiling. It is equipped with a
high-pressure oil pump to automatically supply oil to all parts of
the machine to achieve free lubrication of all parts, greatly
increase the service life of the machine and reduce parts wear.
2. Thread clamp, adjust the tension of the upper thread.
3. The back stitch handle and back stitch handle are in a static
state during sewing operation. If you need to reinforce the sewing
material, press down the back stitch handle and the sewing material
will be fed back.

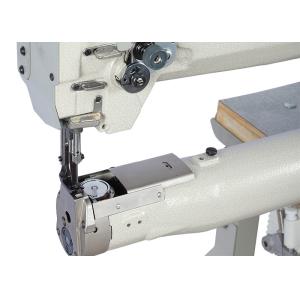

4. Cylindrical sewing table, the cylindrical sewing table can sew
difficult and complicated operations such as cylindrical bag
openings that cannot be sewn by flat sewing machines, with a
diameter of 70mm.
FAQ
Q1. Is your company a factory or trading company? A. We are sewing machine factory, we focus on excellence sewing
machine.
|
Q2. How about your machine quality?
A. I cannot answer to you from our side. But our customer said to
us our machine quality is good and use it about two years no change
voice. After you use it, you will more understand our quality. |
Q3.How about your price?
A.The price depends on model. Our price no expensive, but also no
very cheap, in general, quality is better than price |
Q4. Can I buy one or two pieces?
A. Normally, our MOQ is 50 pcs. However, we can send one or two
pieces machine to your china agent and exported by yourself. |
Q5. How can I get a quotation? A. First please give us your email address and which machine are
your interesting.
|
