    4130 Or 4330 Alloy Steel Material Coupling Sucker Rods From 15106 To 30250

    Ask Lasest Price
    Brand Name : Zhongshi
    Model Number : sucker rod
    Certification : API ,ISO ,QHSE
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 1000pcs
    Delivery Time : 2weeks
    • Product Details
    • Company Profile

    4130 Or 4330 Alloy Steel Material Coupling Sucker Rods From 15106 To 30250

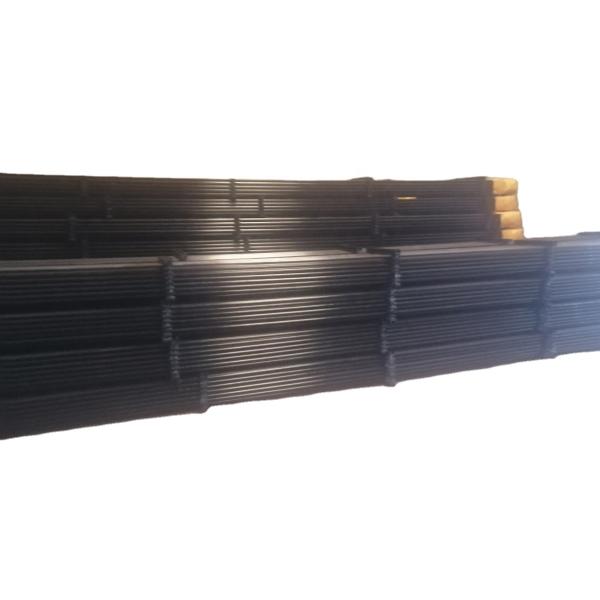

    Sucker Rod Introduction:


    oil rig drilling polished sucker rod and pony rod API sucker rod

    Sucker rods with complete varitey of products sizes and types have reliable quality.
    we can also produce non-standard products in accordance with the users' requirements.
    Specifications of Sucker Rod

    Size

    in (mm)

    Rod Body diameter in (mm)diameter of ext. thread
    in (mm)
    Full size Coupling OD mm (in)

    Coupling

    OD mm (in)

    Wrench square W*L mm (in)Length series m (ft)
    5/8 (16)5/8 (15.88)15/16 (23.81)38.10(1.5)31.8 (1.25)22.2×31.8 (7/8×1-1/4)7.62 (25)
    3/4 (19)3/4 (19.05)1-1/16(26.99)41.28(1.625)38.1 (1.5)25.4×31.8 (1×1-1/4)9.14 (30)
    7/8 (22)7/8 (22.23)1-3/16 (30.16)46.0(1.812)41.3 (1.625)25.4×31.8 (1×1-1/4)0.6 (2), 1 (3)
    1 (25)1 (25.40)1-3/8 (34.93)55.6(2.187)50.8 (2)33.3×38.1(1-5/16×1-1/2)2 (6), 3 (10)
    1-1/8 (28)1-1/8 (28.58)1-9/16 (39.7)60.33(2.375)57.2 (2.25)38.1×41.3 (1-1/2×1-5/8)

    Mechanical Properties of Sucker Rods:


    Grade

    Min Yield strength 0.2%

    offset M Pa (psi)

    Tensile strength
    M Pa (psi)

    Elongation

    δ%

    Reduction of area ψ%
    K414 (60, 000)621-793(90, 000-115, 000)≥13≥60
    C414 (60, 000)621-793(90, 000-115, 000)≥13≥50
    D586 (84, 970)793-965 (114, 985-139, 925)≥10≥50
    KD590(85, 000)793-965 (114, 985-139, 925)≥10≥50
    HL795(115,000)965-1,195(140,000-173,339)≥10≥45
    HY540 (78, 300)965-1,195(140,000-173,339)≥42≥224


    Quality 4130 Or 4330 Alloy Steel Material Coupling Sucker Rods From 15106 To 30250 for sale
