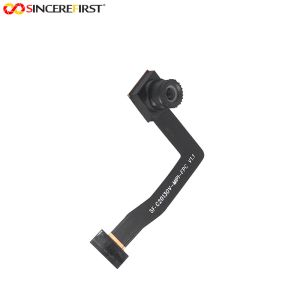

1/2.9 Inch Color CMOS HD Image Sensor OV2718 MIPI FPC Camera Module
Specificaitons
| Type | CMOS Camera Module |
| Sensor | OV2718 |
| Lens Size | 1/2.9inch |
| Resolution | 1080P |
| Output Format | RAW |
| Shutter Type | Rolling Shutter |
| Operating Temperature | -30°C to +85°C |
| Image Area | 5482.35 x 3202 µm |
| Frame Rate | Full @ 30 fps |
| Category | 2MP to 5MP |
Description
OMNIVISION’s OV2718 is a native 16:9 high definition (HD)
CameraChip™ sensor that delivers best-in-class low-light
sensitivity, high dynamic range (HDR), and 1080p HD video. These
capabilities make the OV2718 an ideal camera solution for
mainstream security and surveillance systems.
Built on advanced 2.8-micron OmniBSI™‑2 pixel architecture, the
sensor can record 1080p HD video at 30 frames per second (fps) in
HDR mode. The 1/2.9&8209;inch OV2718 leverages OMNIVISION’s
in‑pixel HDR technology to capture exceptional images and video
when recording in high- and low-light environments, a critical
benefit for security and surveillance cameras.
The OV2718 is available in a 6.5 x 5.7 mm chip scale package (CSP).
Features
◆support for image size:1920x108,VGA,VGA, and any cropped size
◆high dynamic range
◆high sensitivity
◆low power consumption
◆image sensor processor functions:lens correction, defective pixel
cancelation,and automatic black level correction
◆supported output formats: RAW
◆horizontal and vertical sub-sampling
◆SCCB for register programming
◆high speed serial data transfer with MIPI CSI-2/LVDS
◆parallel 12-bit DVP output
◆external frame synchronitation capability
◆one time programmable(OTP)memoryming
Applicaitons
security and surveillance cameras
video applications
smart home
