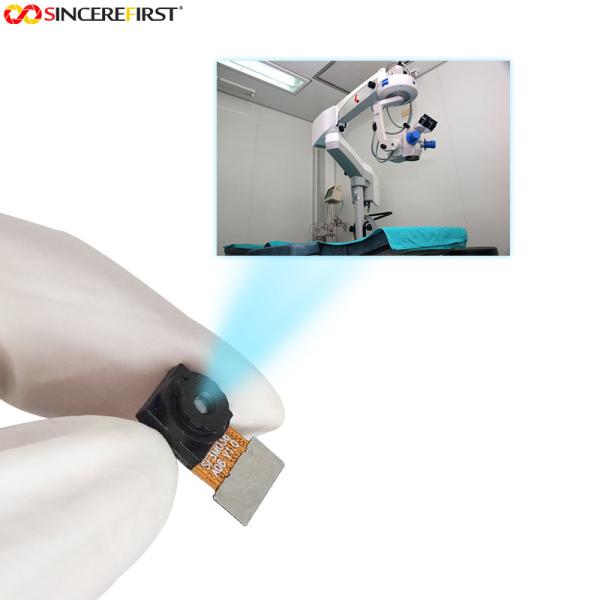

Mini HM0360 mIPI VGA Camera Module Back Illuminated Ultralow Power

Mini​ HM0360 MIPI VGA Camera Module Back Illuminated Ultralow Power

Specificaitons

Description

HM0360 Ultralow Power CIS for Low Energy, Smart Camera Applications. The HM0360 is an ultralow power, Back Side Illuminated (BSI) CMOS Image Sensor designed for energy efficient smart vision applications, such as object-specific classification, tracking, and identification.

Features

◆Ultra Low Power, high sensitivity low noise VGA
sensor
◆Operates 7.8mA VGA 60 FPS down to 240μA in
monitor mode
◆Automatic wake and sleepoperation with programmable event interrupt to wake host processor
◆On chip high precision oscillator, auto exposure/ gain, ambient light sensor and zone detection
◆Metered exposure provides well exposed first frame and after extended sleep (blanking) period
◆External frame synch and stereo camera support
◆Flexible binning, subsampling and region of interest
◆Embedded line provides metadata frame,AE statistics, zone trigger and other interrupt event information
◆On-chip high precision oscillator and LDO
◆1-lane MIPI CS12 and 8-bit parallel/serial data format that supports 1-bit, 4-bit and 8-bit protocol
◆I2C 2-wrie serial interface supporting burst operation
for fast register access
◆<13 mm²CSP sensor package option
◆High CRA for low profile module design

SCCB control interface for register programming

Applicaitons

robotics

home security systems

medical devices

a wide range of other systems.
