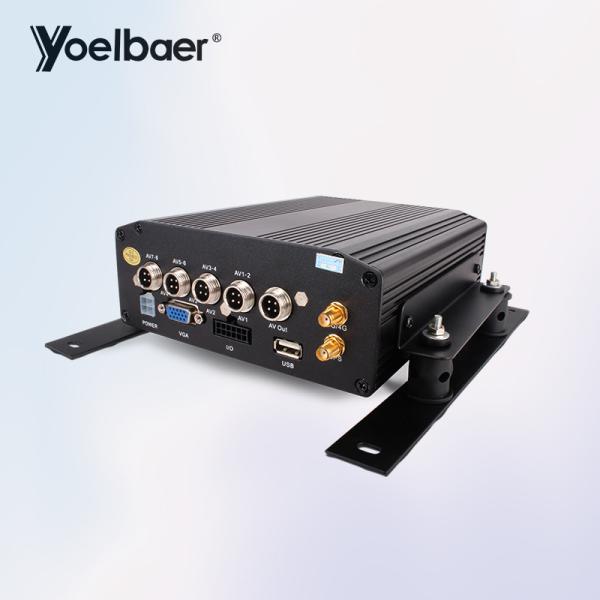

Max Storage 2.5 Inch Hard Disk Dvr Recorder MDVR SSD BUS Security
System
Specification :
* HIS Solution,H.264 Compression Mode, Many stream recording,4CH
Video+4CH Audio Input, Compatible with 4CH 720P/960P Mega Pixels
AHD High Definition Camera input
* GPS/WIFI/3G/4G/WIFI HOTSPOT/CANBUS optional
* Professional Power Design for all kinds of Vehicles, 8-36V DC;
Wide Voltage, Over-load,Over-voltage,Short Circuit,Reverse
Protection,Suitable for all kinds of vehicles.
* Support DC 12V/2.5Amp output, it can offer power for cameras,mini
monitor and some peripheral device.
* Watchdog Abnormal will trigger Restart Protection Function . It
can better protect Device and Video.
* Exclusive pre-allocate DVR Special File System Technology,Solving
repeatedly wipe cause file fragmentation, and ensure the integrity
of the data.
* By accidents power-off protection function.Unique UPS Technology
ensures the integrality of record when power failure occurs,even
can for 10-15s.
* Flame out Time-lapse Video Recording Function ( Highest support
long delay time 24 hours.)
* Auto Recording,Time Recording,Alarming Recording Modes for
Different Request.
* Display vehicle traffic status, Vehicle numbers ,Route, Super-low
speed vehicle Information, Convenient management.
* Support GPS/BD,G-sensor Modules Extension.
* 3channels RS232 +2channel RS485.
* Superior network function, can configure menu through IE, support
mobile SMS to configure parameters and obtain device information.
* Support Video&Audio monitoring,2-way Intercom, PTZ control,
manually Alarm,Overspeed,Geo Fence etc through remote control
platform
* 8CH alarm inputs (Doors, lights, steering, braking, reversing and
all types can be configured), Can support kinds of response
linkages.
* 2CH alarm output, Support the linkage acousto-optic alarm, cut
off fuel oil/power,etc .
* Support Local Auto-photo when alarm input,device pictures preview
function;
* All Aviation plugs, Super stable, High Anti-shock,Easy
installation Plug in and out.
* Unique WINDOWS 8 interface, Easily Smart GUI Interface, Fluent
system interface is intuitive and perfect.
* Support SD card Remote Software Upgrade/OTA remote upgrade
automatically, partition *Can be batch functional customization
according to customer's requirements;
Specification :
| Power | Voltage Input | DC8-36V |
| Voltage Output | DC12V (+/-0.2V, max. 2.0A) |
| DC5V (+/-0.2V, max. 0.5A) |
| System | Language | Chinese/English |
| OSD | Graphical User interface OSD menu |
| Password | Users Password/ Administrator Password |
| Video | Video input | 4CH AHD or Analog Video Inputs |
| Video output | 2CH Video Inputs (1.0Vp-p/ 75 Ohms) |
| Preview | 1 CH/ 4 CH Preview. |
| Recording Ratio | PAL: 25 Frame/s; NTSC: 30 Frame/s |
| Image Compression | H.264 Main profile |
| Audio | Audio input | 4-CH |
| Audio output | 1-CH |
| Recording mode | Audio & Video sync. |
Image processing & Storage
| Video Quality | 720P/D1 adjustable for each channel; Highest Video Quality: 4CH Full 720P |
| Bit Rate | 720P: 2048Kbps~6144Kbps |
| D1: 512Kbps~1536Kbps |
| 5 levels optional. |
| Storage | 2TB Hard Disk & 128GB SD Card (maximum) |
Alarm
| Alarm input | 4 alarm inputs |
| Alarm output | 1 alarm output, |
| Communication Port | RJ45 Interface | No |
| USB 2.0 Port | Yes |
| RS232 Interface | 1-RS232 interface |
Wireless
| 3G/4G | Optional |
| Wi-Fi | Optional (Wi-Fi Client/ Wi-Fi Hotspot) |
| GPS | External GPS Module (Optional) |
| G-Sensor | Yes |
| Upgrade | Support HDD & SD card Firmware Upgrading |
| Operation Environment | Temperature | -25 degrees to +70 degrees |
| Humidity | 10% to 95% |
