| Brand Name : | Kuangshan |
| Model Number : | JM |
| Certification : | CE,ISO |
| Price : | USD500/Set |
| Payment Terms : | Western Union, T/T, L/C |
| Supply Ability : | 1000000sets/month |
| Delivery Time : | 20work days |

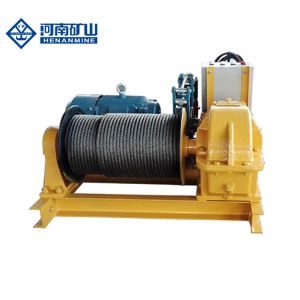

JK Used for Tracton the Weight Droop
JK fast series Winch mainly used for materials lifting and tracton the weight droop during construction.It also used for crane as main hoist.

| Y brand winch | WINCH TECHNIQUE PARAMETER | |||||||||||
| Rated load (KN) | Rated speed (m/min) | Rope capacity (m) | Rope Diameter (mm) | Motor type | Motor power (KN) | Overall dimension (mm) | Weight(Kg) | Type | ||||
| JK MODEL FAST SPEED ELECTRONIC CONTROL WINCH | JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 | / | ||
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 | / | |||
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 | / | |||
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 | / | |||
| KK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 | / | |||
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 | / | |||
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 | / | |||
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 | / | |||
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 | / | |||
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 | / | |||
1. motor.
2. Reduction gear box.
3. winch drum.
4. Brake.
5. electric control system.
6. optional rope guider.
If you interest,contact us anytime.
|
