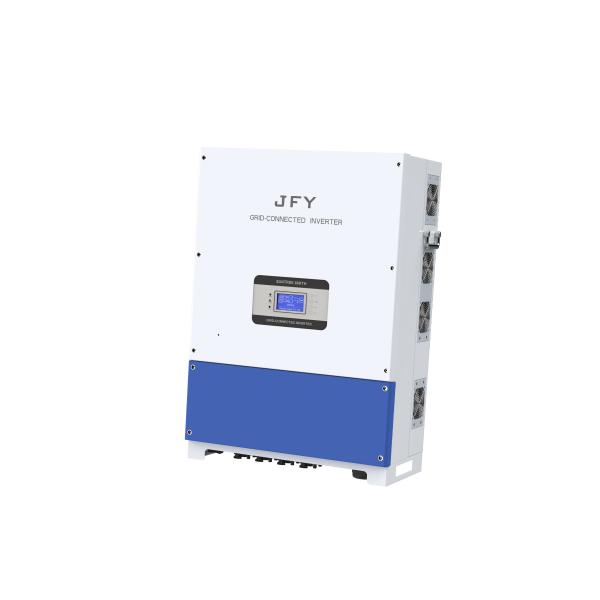

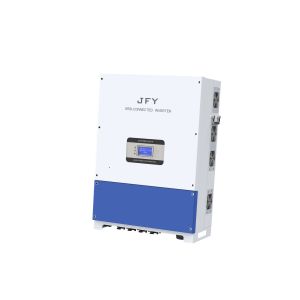

50KW Three Phase Solar On Grid Solar Inverter

Add to Cart

Three phase PV Grid-tie inverter With Suntree 50KTL

SUNTREE Series 50K-60KTL+

Three Phase String Inverter

Performance characteristics

> Large LCD screen, multifunctional buttons, easy to operate

> Input voltage wide range: 250-1100Vdc

> Multiple MPPT design, maximum efficiency of 98.8%

> String level monitoring, efficient and quick fault diagnosis

> Multiple communication connections: RS232.RS485, WIFI, GPRS

Technical data	50KTL	60KTL
Input (DC Side)
Max. DC input power	56000W	66000W
Max. DC voltage	1100Vdc
Start voltage	250Vdc
MPPT voltage range	200-1000Vdc
Number of inputs	8
Number of MPPT	4
Max. input current	4*30A
Output (AC Side)
Rated output power	50000W	60000W
Max. output power	56000VA	66000VA
Rated output current	72.2A	86.6A
Max. output current	79.4A	95.3A
Rated output voltage	400Vac
Output voltage range	323~480Vac
Grid frequency range	50/60HZ+5
Power factor (cos φ)	0.8 (leading)-0.8 (lagging)
THDI	<3%
Efficiency
Max. efficiency	98.5%	98.8%
Euro, efficiency	98.1%	98.2%
MPPT efficiency	99.9%	99.9%
Protections
Built-in protections	DC Reverse Polarity, Short Circuit, Output Over Current, Output Over Voltage, Insulation Resistance Monitoring,Residual Current Detection, Surge Protection, Anti-Island Protection, Over Temperature Protection
Lightning protection	DC Type \|\|/AC Type \|\|
General Data
Operating temperature	-25~+60°C
Noise	≤60dB (A)
Night power consumption	<2W
Electrical isolation	Transformerless
Cooling concept	Intelligent Fan cooling
Degree of protection	IP65
Com munication :RS232/RS485/WiFi/4G	yes/opt/opt/opt
Dimension (WDH )	545270782mm
Weight	58kg	62kg
