HDMI (High-Definition Multimedia Interface) is a digital interface
used for transmitting high-definition video and audio signals
between devices. It was first introduced in 2002 and has since
become the standard interface for connecting devices such as
televisions, Blu-ray players, game consoles, and computers to
displays such as monitors and projectors.
HDMI supports a range of video resolutions, including
standard-definition (480i), high-definition (720p, 1080i, and
1080p), and even ultra-high-definition (4K and 8K) resolutions. It
also supports several audio formats, including stereo, 5.1 surround
sound, and even up to 32 channels of audio.
Product Feature
| Housing | LCP(UL94V-0) Black, 30% G/F |
| Contact | Brass C2680 T=0.20mm |
| Shell | SUS304 T=0.4mm |
| Contact Resistance | 30mΩ Max |
| Dielectic Withstanding Voltage | 500 VAC between Adjacent terminal or Ground |
| 300 VAC between Adjacent terminal or Ground |
| Insulation Resistance | 100mΩ Min Min. (Unmated) |
| 10mΩ Min Min. (Mated) |
| Insertion Force | 44.1N(Kgf) Max. |
| Extraction Force | Initial: 9.8N(1.0kgf)-39.2N(4.0Kgf) |
| After Test: 4.9N(0.5Kgf)-39.2N(4.0Kgf) |
| Contact Material | Phosphor Bronze |
| Contact Plating | Under Plating: Ni 50u” |
| Contact Area: Gold Flash Plated |
| Solder Area: Matte Tin 80u"~100u" |
| Shell Plating | 50u" Min. Under Plated over all |

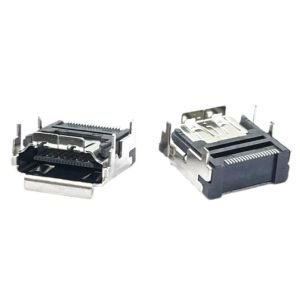

Images:
Drawings:
HD06A-LBA20-TRA.pdf, if you need the Drawing, pls download it
How to use HDMI Connectors?
To use HDMI connectors, you will need an HDMI cable and two devices
that have an HDMI port. Here are the steps to connect two devices
using HDMI:
Make sure that both devices are turned off and unplugged from the
power source.
Locate the HDMI ports on both devices. They are usually labeled
"HDMI" and are typically found on the back or side of the device.
Connect one end of the HDMI cable to the HDMI port on the first
device.
Connect the other end of the HDMI cable to the HDMI port on the
second device.
Turn on both devices and select the HDMI input on the device you
want to use.
You should now be able to see and hear the content from the first
device on the second device.
Note that some devices may require additional settings adjustments
to display content through the HDMI connection. In this case, refer
to the user manual of the device or consult the manufacturer's
website for instructions on how to configure the settings.
