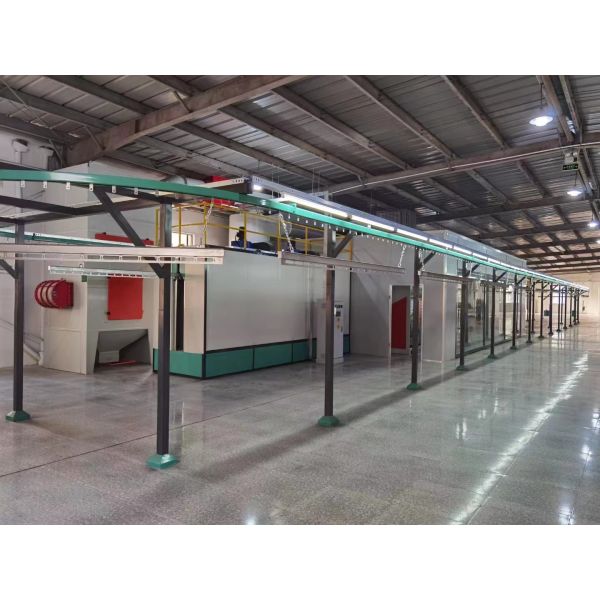

Product Description:
Our MDF coating line high-end spraying equipment design, research
and development, sales. The company's products are widely used in
metal spraying industry, furniture and wood spraying industry, and
key products supporting the spraying industry. It has hundreds of
large-scale automatic spraying equipment cases in various
industries across the country.
Over all Control Of Coating Line
Circuit control:
This set of equipment adopts man-machine interface control and
control panel control, and sets protection (overload, phase loss,
leakage) for spraying production line, supply and exhaust system,
conveying line, spray gun, curing furnace and other control
systems.
The air supply and exhaust system of the spray room is controlled
by frequency conversion (or manually adjust the air valve).
B: Compressed air piping:
Gas pipelines are equipped with pressure gauges and flow control
valves.
The air pipes in the spraying area shall be precisely filtered by
oil removal, water removal, etc. Party A shall equip Party B with
the required air pressure gas and provide spraying
If the stable gas required by the equipment is unstable after the
air flow is led to the workshop due to the long pipeline, the air
pipeline in the painting workshop is buffered
The cans shall be handled by Party A..
C: Air supply and exhaust system:
The whole system is equipped with air supply system and air volume
adjustment function. (Advantages: 1. Energy saving and
environmental protection 2. Easy to operate)
Spray room is independent exhaust, are equipped with air volume
adjustment function. (Advantages: 1. Energy saving and
environmental protection 2. Easy to operate)
Technical Parameters:
| Workpiece material | MDF |
| Maximum workpiece size | L3000mm*H800mm*D50mm |
| Coating powder | Low temperature powder |
| Speed | Adjustable, linear speed range V=1.2~ 2.0m /min |
| Lifting plate length | 2.7-3m/ group |
| Capacity | Maximum production capacity per hour project order: 40 ㎡ (actual
production capacity is calculated according to the size of the
board) |
| Preheating oven temperature | Room temperature ~ 90℃ adjustable |
| Heating oven temperature | Adjustable Range 110℃ - 150℃. Temperature difference range within
10 degrees
|
| Spraying method | Automatic + manual
|
| Energy source |
| Electric | AC380 50HZ,150KW |
| Natural gas | -- |
| Air supple | 5m3/min,6kg/cm2 ,freeze-dried and treated with oil and water
filtration |
Design Description:
1) Equipment installation site: L42 m *W8 m *H6 m
2) Workpiece name: wardrobe door panel, office desktop, and
children's furniture
3) Maximum and minimum size of the product: length
3000mmx800mmx50mm
4) Output: single shift 8 hours project output demand: 300 ㎡ parts
(actual production capacity according to the size of the plate)
5) Workshop height: 7 meters
6) Basic process flow: upper part → preheating 1→ auto-static
electric spray powder → curing 1→ curing 2→ curing 3→ ladder
cooling → quality inspection → lower part
1. Preparation of the upper part: the plate must be properly opened
hanging holes, matching with the secondary hook, using conveyor
raceways or
Turnover car to the top parts area.
2. The workpiece is hung into the online hanging plate;
3. Automatically enter the plate preheating furnace; (with
temperature and time Settings)
4. Spray powder on six sides of the powder chamber; (A/B side is
optional powder mode)
5. Check the spraying effect and powder rate in the dusting area,
and adjust the dusting control reasonably;
6. Automatically enter the curing furnace; (with temperature and
time setting);
7. Enter the step cooling zone step by step release;
8. Open running with the line natural cooling to the lower part
area;
9. Workpiece offline, inspection, packaging;
