Product Description:
;
Features:

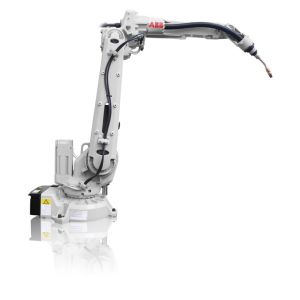

The ABB IRB1520ID robot is a great choice for welding applications
due to its numerous features. It boasts a compact design,
outstanding precision and repeatability, as well as an integrated
dressing package that facilitates cable management, thus reducing
the risk of cable damage and resulting downtime.
The invert-mounted design further boosts accessibility to the
workpiece, while at the same time limiting potential collisions
with other equipment. On top of that, the robot also comes with
ABB's ground-breaking TrueMove technology. This innovative
technology ensures consistent path following, resulting in superior
welds.
Technical Parameters:
| Parameter | Value |
|---|
| Name | Welding Robot Arm |
| Model | ABB IRB1520ID |
| Speed | 2.2m/s |
| Accuracy | 0.05mm |
| Repeatability | ±0.05mm |
| Weight | 300kg |
| Condition | New |
| Axes | 6 |
| Installation | Floor, Wall, Tilt And Ceiling |
| Warranty | 1 Year |
Applications:
The ABB IRB1520ID robot is a great choice for a wide range of welding applications. It
allows for MIG, TIG, plasma, and laser welding and is perfect for
use in the automotive and aerospace industries due its compact
design and high precision. This makes it the perfect solution for
welding of small parts and in tight spaces.
The IRB1520ID is suitable for a variety of industries, such as
electronics, medical, and consumer goods. Furthermore, this robot
is also useful for other material handling tasks, such as
packaging, palletizing, and machine tending, making it a versatile
solution for its purchasers.
Support and Services:
Welding Robot Arm Technical Support and Services
We provide comprehensive technical support and services for Welding
Robot Arm.
- On-site technical training and installation
- Regular maintenance and inspections
- Technical advice and troubleshooting
- Software and hardware updates
- Spare parts support
- Replacement parts
We also offer extended warranty and other services tailored to your
needs.
Packing and Shipping:
Packaging and Shipping of Welding Robot Arm:
- The robot arm shall be packed in standard export cartons.
- The internal packaging of the robot arm shall be sufficient to
protect it from damage during shipping.
- The robot arm shall be shipped in compliance with international
standards.
