AW55030 Industrial 30bar 7.5kw piston air compressor pump cylinder
piston belt driven air compressor pump head
Industrial 7.5kw 10hp piston air compressor pump
Main Features
1) Research and developed by ourself.
2) Crankshaft box with round shape is larger, heavier and thicker
than other ones.
3) Piston with 4 rings can prolong service time and reduce engine
oil consumption.
Products Description
JUCAI mini air compressor (air compressor head, bare pump) is for
industrial use.
The compressor pump has two types: unloading and automatic.
Heavy-duty design.
Stable and reliable quality.
JUCAI air compressor head is with low cost but heavy duty. With
single-stage and two-stage.
Main Features
1. Continuous running unloader
For continuous-running air compressors, unloader lets unit idle
load-free until air supply drops to
cut-in pressure;automatically lets unit idle again after high
pressure limit is reached. (Tubing and
fittings not included on bare compressor).
2. Valve assembly
All units use large disc-type valves made from Swedish steel for
high efficiency and long wear.
3. Suction strainer
Permanent type strainer effectively filters air and muffles noise
of air intake. Easily removed for periodic cleaning.
4. Cool cylinder heads
Deep directional fins provide quick cooling; compact streamlined
air passages in the cylinder head permit fast,
efficient flow of cooler intake air and rapid removal of discharge
air.
5. Long-life cylinders
Precision-machined cylinder walls are honed glass-smooth to reduce
friction and wear to a minimum.
Extra-deep fins provide increased cooling and greater strength.
6. Rings
Long life industrial design compression and oil control rings are
used to assure maximum performance.
7. Connecting rods
All units contain precision bored, industrial quality designed
connecting rods. Splash lubrication is used.
8. Balanced Crankshafts
Made from a high-tensile forged alloy steel, precisely ground and
dynamically balanced to insure long life and
smooth operation. Journals are ground precisely to extend bearing
life.
9. Crankcase
The extra large crankcase with big oil reservoir assures cooler
running and better lubrication.
10. Balanced fan-type flywheel
Airfoil-type spokes provide a continuous powerful blast of cooling
air for all portions of the compressors;
balancing assures smooth vibration-less operation.
11. Main bearings
To ensure long life and easy maintenance, high quality ball
bearings or tapered roller
bearings are used in the Fu Sheng compressors.
12. Easy oil check
The oil level check is in a convenient location for "tell at a
glance" reading of oil level in crankcase.
Features of Jucai compressor
Cast-iron Quality
Swedish stainless steel valves for long life
Splash lubrication &precised balanced cast-iron flywheel
Cast-iron valve plate with fine grinding
High-accuracy machined components
Low oil consumption
Matching model (AW55030)
Specifications
| Model | HW-90T |
| Motor (kw/hp) | 7.5/10 |
| Exhaust pressure (bar) | 30 |
| Exhaust volume (L/min) | 550 |
| Stroke (mm) | 75 |
| Cylinder (diameter x piece) | 90*2 / 51*1 |
| Overall dimension (L x W x H mm) | 166*57*117 |
| Net weight (kg) | 362 |
FAQ
1. Are you a factory or trading company?

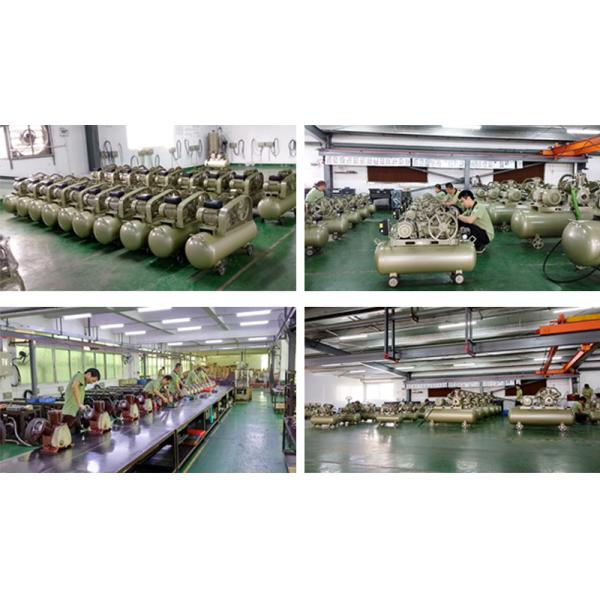

We are a professional manufacturer with big modern factory in Guandong, China.
Both OEM & ODM service can be accepted.
2. Which trade term can you accept?
Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
3. How long will you take to arrange production?
380V-440V 50HZ/60HZ we can delivery the goods within 1-7 days. Other electricity or other colors we will delivery within 25-30 days.
4. How long could your air compressor be used?
Generally, more than 10 years.
5. Will you provide some spare parts of the machines?
Yes, of course.
6. What’s your warranty?
Our warranty is one year.
It means that if our machine has any problems within one year, we will send you new one or free spare parts for your
replacement.
