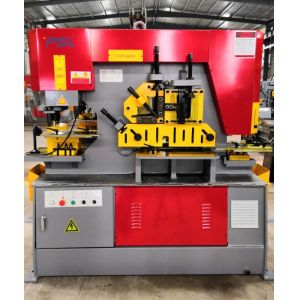

    250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50

    Ask Lasest Price
    Brand Name : PSL, OEM
    Model Number : Q35Y-50-250T
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 30 sets per month
    Delivery Time : 15-30days
    Certification : CE ISO
    • Product Details
    • Company Profile

    250 Ton Ironworker Hydraulic Press Hydraulic Punch And Shear Machine Q35Y-50


    Professional Profiles Processing machine Hydraulic combined punching and shearing Ironworker Q35Y-50


    Product Description,

    Multi-function Ironworker goes along with Automatic Holding System and Temperature Cooling System. Hydraulic Iron worker can punch, cut, notch and bend for flat bar,square bar,round bar,equal angle,channel.It is the latest product of the punching and shearing machine at home and abroad.
    Main Features:
    * Technically dimensioned bed
    * Cylinder with additional guide.
    * Strong and accurate shaft system to avoid distortions
    * Gradual centring of punch
    * Quick punch change
    * Safety protection.
    * Ample space for mounting special equipment
    * Optimum operation speed
    * Large number of optional, standard and special accessories to perform a wide range of jobs

    The main functions of the machine and equipment :
    Metal sheet punching, 90 degree and 45 degree angle-steel shear, profile shear, sheet shear, profile trimming, etc. Punching and die-shearing workstations, if replaced with other accessories matched with this machine, can also be used for shearing stamping of special shapes, bending sheet metal, V-notch shearing and other processes. They are suitable for shipbuilding, power, bridges, automobiles, crane transportation, metal structure and other machinery processing plants.

    Functions Tree,



    Main Technical parameters,


    Model

    Q35Y

    -16

    Q35Y

    -20

    Q35Y

    -25

    Q35Y

    -30

    Q35Y

    -40

    Q35Y

    -50

    Processing

    Capacity

    (KN)

    6009001200160020002500

    Material

    Tensile Strength

    (Mpa)

    ≤450≤450≤450≤450≤450≤450

    Ram Stroke

    (mm)

    80808080100100

    Number

    of Stroke

    (times/min)(mm)

    11-2012-208-186-166-166-12

    Throat Depth

    (mm)

    300355400600530600
    Shear Angle

    Flat She

    aring

    Max

    Shearing

    Capacity

    (thickness*

    width)(mm)

    16×25020×33025×33030×33540×33550×300
    8×40010×48016×60020×60030×60030×750

    Bar She

    aring

    Square

    Bar

    (mm)

    40×4050x5050×5055×5560×6065×65

    Round

    Bar

    (mm)

    455060657080

    H-beam

    (mm)

    100×100120×120175×175200×200250×250

    C-channel

    (mm)

    120×

    53×5.5

    160×

    63×6.5

    200×

    75×9

    280×

    86×11.5

    300x

    89x11.5

    320x

    92x12

    I-beam

    (mm)

    120×

    74×5

    160×

    88×6

    200×

    75×9

    280×

    124×10.5

    300x

    130x13

    320x

    130x13

    Angle Shearing

    90°shearing

    (mm)

    120×

    120×

    12

    140×

    140×

    12

    160×

    160×

    14

    180×

    180×

    16

    200×

    200×

    16

    200×

    200×

    18

    45°shearing

    (mm)

    60×

    60×8

    70×

    70×10

    60×

    60×7

    80×

    80×8

    80×

    80×10

    100×

    100×12

    Hole Punching

    max

    diameter

    of punching

    (mm)

    ф25ф30ф35ф38ф40ф45

    Punching thickness

    (mm)

    162025283540
    Motor(KW)5.57.5111518.518.5

    Dimension

    (mm)

    1740×

    810×

    1830

    1950×

    900×

    1950

    2355×

    960×

    2100

    2800×

    1050×

    2450

    2900×

    1110×2500

    3200×

    1440×2500







    Moulds and blades,
