mobile cctv system dvr with Fuel sensor
The MDVR allows you to track and view your vehicles in REAL TIME
via live video camera streaming from up to 4 cameras on your truck,
car ,bus,taxis, police cars, excavators, petorl trucks, law
enforcement vehicles, and other various types of vehicles with people counting,RFID card
reader,fuel consumption sensor,LED display functions etc.
Using the Internet, GPS, and Mobile CCTV technology, you can now
view your vehicles, drivers and cargo from your office, wherever

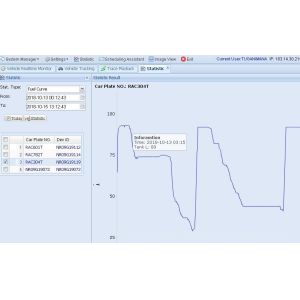

they are in the country. Our cloud-based Control Room software also
allows you track your fleet, identifying speed, location,
fuel-level and many more.
Vehicle Tracking that lets you SEE the FULL picture.
Product Specification:
1. General
Language - English/Chinese
OSD - Graphic User Interface (OSD menu)
Password - User password/Administrator password
2. Video
Input - 4CH AHD/8CH IPC(NVR)
Output – 1CH VGA video output, 1CH CVBS video output Display -
1CH/2CH/4CH/9CH display
Standard - PAL/NTSC
Image Compression - H.265 Main profile, 25fps/CH
3. Audio
Input - 4CH audio input 1CH mic input
Output – 2CH Audio Output (CVBS)
Recording Mode - Synchronous recording in audio & video
4. Image Processing & Storage
Video format - 1080P/720P/960H/D1/CIF optional
Video Stream - ISO14496- 10
Video Bit Rate (kbps)
D1:30fps/512K/1M/2M/
HD1:2048 ~ 400kbps/CIF:1536 ~ 128kbps
AHD:1080P:30fps/1M/2M/4M/6M 720P:30fps/1M/2M/4M/6M
IPC:1080P:30fps/1M/2M/4M/6M 720P:30fps/1M/2M/4M/6M
9 levels settings optional, highest: level 9; lowest: level 1
Audio Bit Rate - 8KB/S
Storage - Support 2.5” HDD, Max.2TB; Support 1*SD card, Max 256GB
5. Alarm
Input - 6CH alarm input
Output - 2CH alarm output, high level 12V output
6. Communication Port
RS485 Interface - Support 1 RS485 interface
RS232 Interface - Support 2 RS232 interface
RJ45 Interface – Support external IPC for hybrid NVR function
USB Interface - Support 1*USB interface for
software upgrading and record file copy
7. Extended Interface
DMS Face Recognition - Driver fatigue driving detect and warning
People Counting - 1-door/2-door bus people counting
ADAS --Vehicle Disance monitoring and waring
Intercom- Support 1 special intercom hand mark interface
Fue level sensorl--fuel consumption monitoring
Temperature Sensor--Temperature monitoring
8. Wireless
3G - 3G (HSUPA/HSDPA/WCDMA/EVDO/TD-SCDMA) module optional
4G - 4G (FDD-LTE/TDD-LTE) module optional
WIFI/WIFI AP - WIFI module (2.4/5.8GHz) optional
GPS - Support built-in GPS module, Geographical co- ordinates,
driving speed can be written in coding flow, and uploaded via
wireless
G-Sensor - Build-in G-Sensor
9. Software
PC Playback - Play back video on computer and analyze vehicle
information from recording file
CMS - Video preview, GPS uploading, alarm uploading, central
command parameter configuration etc. via wireless
BS- Support Website platform
Software Upgrading - Support USB upgrading, HDD upgrading, SD card
upgrading and CMS remote upgrading
Fuel sensor specification
ZC08 Fuel sensor is independent research and development by Vanwin
Tech, which within innovative technologies. It can detect fuel
level continuously. And The resolution is less than 1mm. JT606 can
be cut the length to fit the height of fuel tank .Simply flanged
installation that no need extra screws. Wide voltage input to make
sure no voltage limits under any situation.
Features:
1)It can be cut according to the height of fuel tank.
2)Integrated structure without any elastic elements, also support
various signal output.
3)Push-button field calibration, it’s very convenient.
4)Wide Power voltage input.
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size | 100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
| 3 | Electrical parameters | Input DC:4—70V |
| 4 | Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| 5 | Signal output (can be customized) | Voltage output:0—5V |
| Digital output:RS-232 RS-485 |
| Analog resistant output:10—500Ω |
| Current output: 4—20mA |
| Communication baud rate:2400,4800,9600,57600,115200 |
| 6 | Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
| 7 | Use of the environment | Work temperature:-40℃~+85℃ |
| Save temperature:-40℃~+105℃ |
| 8 | Material | Aluminum alloy |
| 9 | Protection class | IP67 |
| NO. | Item | Performance parameters |
| 1 | Collection principle | Capacitance |
| 2 | Size | 100mm to 1500mm(minimum can be detected 100mm,maximum can be detected 1500mm) |
| 3 | Electrical parameters | Input DC:4—70V |
| 4 | Power Consumption | 0.13W/5V, 0.19W/12V, 0.38W/24V |
| 5 | Signal output (can be customized) | Voltage output:0—5V |
| Digital output:RS-232 RS-485 |
| Analog resistant output:10—500Ω |
| Current output: 4—20mA |
| Communication baud rate:2400,4800,9600,57600,115200 |
| 6 | Detection of liquid type | Diesel, bio diesel, kerosene, gasoline, etc. |
| 7 | Use of the environment | Work temperature:-40℃~+85℃ |
| Save temperature:-40℃~+105℃ |
| 8 | Material | Aluminum alloy |
| 9 | Protection class | IP67 |

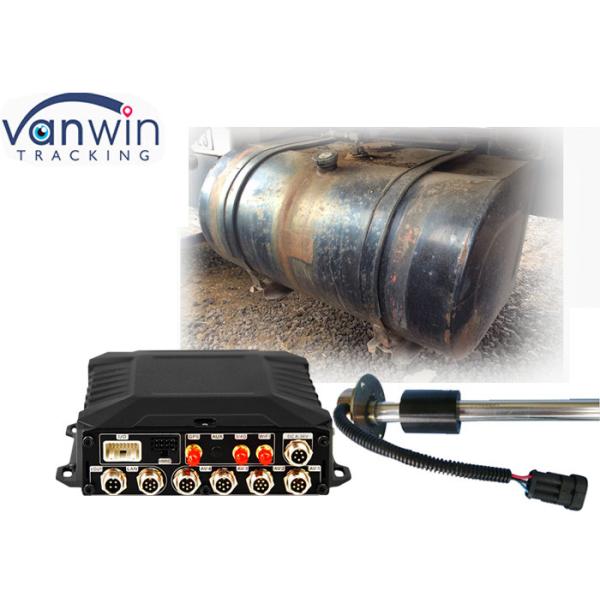

Product Picture
