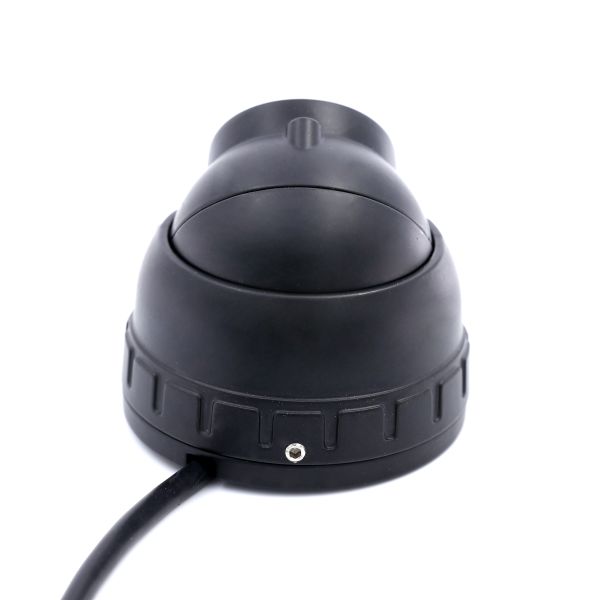

1080P AHD Waterproof Cctv Security Vehicle Camera Dome camera
Feature:
This is sony CCD Mini dome cameras with starlight night vision for
internal use.
It works with 12pcs F5 infrared LEDs to create 10-15 meters
infrared distance for night vision to monitor in dark environment.
It adopts 2.1mm, 2.8mm, 3.6mm fixed focus lens to let you view
objects within 10~15 meters.
It can be worked with DVR recorder, quad processor, DVR, Reversing
system.
It can be viewed through monitor, TV, PC, smart phone and etc.
Technical Specifications
| Technology | infrared |
| Sensor | Sony 327 Chip |
| Shape | Dome camera |
| Types | Indoor car camera |
| Waterproof | IP65 |
| Audio | Optional audio |
| Lens | 2.1MM/2.8MM/3.6MM |
| IR LED | 12PCS |
| Power | DC12V/24V |
| Color | Black |
| Connector | 4 PIN connector or RCA connector |
| Material | aluminium alloy |
| Effective Pixels | 720P/1.3MP 1080P/2.0MP |
| Operating Temperature | -25℃~70℃ |
| Chip Technical Specifications |
| Image Sensor | 1/2.9" IMX323 2.0 MP | Video Out | 1CH BNC AHD output,
Support TVI/CVI/CVBS Mode |
| Image System | PAL/NTSC | WDR | auto |
| Resolution | 1920 (H)×1080(V) | SNR | >45db |
| Min.illumination | 0.01Lux full color | White Belance | AWB |
| Electronic Shutter | 1/25s~1/100,000s | DR | 76db |
| Video Standard | AHD | Advanced Function | 2D_DNR |
| Frame Rate | 1920×1080@25 fps;
1920×1080@30 fps; | Working Environment | -25℃~+70℃,Humidity 95% |
| Lens | 2.1/2.8/3.6 | Power supply | DC 12V +/-15%, |
Connectors for option
1. 4-pin connector
2. RAC connector
3. BNC connector
Q: What is the MOQ ?
A: 1 peice
Q: How fast for sample delivery?
A: 3-7 days
Q: Can I get a lower price if I order large quantities?
A: Yes, the larger the quantity, the cheaper the prices.
Q: How about the warranty period?
A: One year!
Q: How can you guarantee the quality?
A: We have a QC team with 12 years’ experience. All of the products
will run through over 4 times’ 100% testing before being delivered.
