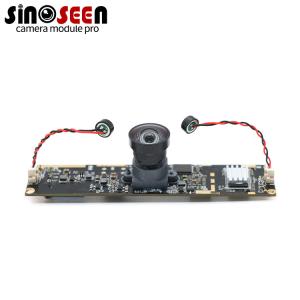

8MP 4K Fixed Focus Camera Module With IMX415 Sensor With Analog Microphone USB Type-C Interface

8MP 4K Fixed Focus Camera Module With IMX415 Sensor USB Type-C Interface

4K 8MP camera module

The 8MP 4K fixed-focus camera module with IMX415 sensor and USB Type-C interface is a compact camera system designed for high-resolution imaging applications. It uses the Sony IMX415 image sensor, which is known for its excellent image quality and low-light performance. The camera module supports 8MP resolution, and the corresponding shooting resolution is 3840 x 2160 pixels, commonly referred to as 4K resolution. This captures highly detailed images and videos with rich color and clarity. The USB Type-C interface provides a convenient and widely compatible connection for the camera module. It enables high-speed data transmission and power transmission, allowing the camera module to be easily connected to devices that support the USB Type-C interface, such as smartphones, tablets or computers.

Specification

Model No	UX-9381-XZC-V10
Sensor	1/2.8’’ SONY IMX415 CMOS
Pixel	8 Mega Pixel
Most effective pixels	3840(H) x 2160(V)
Pixel Size	1.45µm x 1.45µm
Image area	3864(H) x 2192(V)
Compression format	MJPEG / YUV2 (YUYV)
Resolution & Frame rate	See above
Shutter Type	Electronic rolling shutter
Focus type	Auto focus/ Manual focus
Chroma	Color, RGB
Clock Frequency	6 to 72 MHz
Microphones	Built-in
Interface type	USB type-c
Adjustable parameter	Brightness/Contrast/Color saturation/Hue/Definition/Gamma/White balance/Exposure
Lens	Focal length: 3.6mm
	Lens construction: 5E+IR
	D FOV: 100 degree
	Thread Size: M12*P0.5
Audio frequency	Optional
Power supply	USB BUS POWER
Operating Voltage	DC 5V
Operating Current	260mA
Main chip	DSP/SENSOR/FLASH
Auto Exposure Control (AEC)	Support
Auto White Balance (AEB)	Support
Auto Gain Control (AGC)	Support
Dimension	Customizable
Storage temperature	-40˚C to 85 ˚C
Operating temperature	-30˚C to 85 ˚C
USB cable length	Default
Support OS	WinXP/Vista/Win7/Win8/Win10 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Android 4.0 or above with UVC
