    Mine Area Using 6x4 Articulated Truck Weichai Engine Strong Power

    Ask Lasest Price
    Brand Name : Beijun
    Model Number : BJUK-12
    Certification : CE,ISO
    Payment Terms : L/C, T/T
    Supply Ability : 1000 Set/Sets per Month
    Delivery Time : 8-13 days
    • Product Details
    • Company Profile

    Mine Area Using 6x4 Articulated Truck Weichai Engine Strong Power

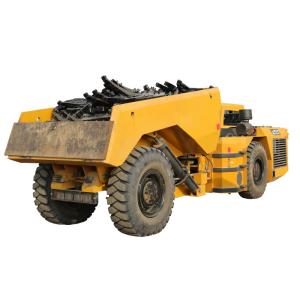

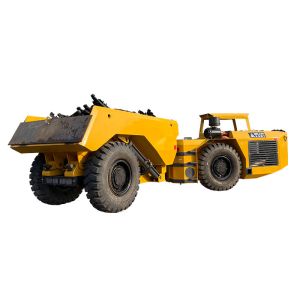

    Articulated Mining Dump Truck With Loading Capacity 12 Tons Used For Underground Mine


    Adopting the Guosan Weichai engine, it has strong power and good climbing performance, low fuel consumption, and is environmentally friendly and reliable.


    Adopting a super large flow rate three stage thousand type air filter (pre filter+coarse filter element+fine filter element), with sufficient air volume and good filtration effect.


    Special tires for mining, solid and stable, with anti slip stability


    the Specification of Underground Truck BJUK-12
    Dimensions (LxWxH) (mm)7734×1951×2357
    Curb weight (T)12.5
    Bumper Bucket volume (m3)6
    Rated load capacity (T)12
    Maximum traction force (kN)125
    Maximum height of the machine when unloading (mm)3880
    Loading height (mm)1951
    Minimum ground clearance (mm)316
    Minimum turning radius (outside) (mm)7263
    Approach angle (°)14
    Gradeability (heavy load) (°)14
    Maximum lift angle of the car box (°)69
    Dumper lift time (s)12
    Dumper drop time (s)6
    Maximum forward speed (Km/h)28
    Reverse maximum speed (Km/h)10
    Diesel engine brandWeichai Power
    Diesel modelWP6G175E331
    Diesel EmissionsEUROIII
    Diesel engine power129kW@2200rpm
    Max torque/speed750Nm/1700rpm
    Air intake systemDry three-stage filtration
    Exhaust systemExhaust gas purifier
    Torque Converter ModelYJ320B-1
    GearboxBS428
    Tire14.00-24
