    RAKINDA F2-H Face Recognition Device with Live Temperature Detection

    Ask Lasest Price
    Brand Name : RAKINDA
    Model Number : F2-H
    Certification : ROHS,FC,FCC
    Price : Negotiation
    Payment Terms : Western Union, T/T, L/C, D/A, D/P, MoneyGram
    Supply Ability : 200PCS/Week
    Delivery Time : Within 7 working days after receiving the balance
    • Product Details
    • Company Profile

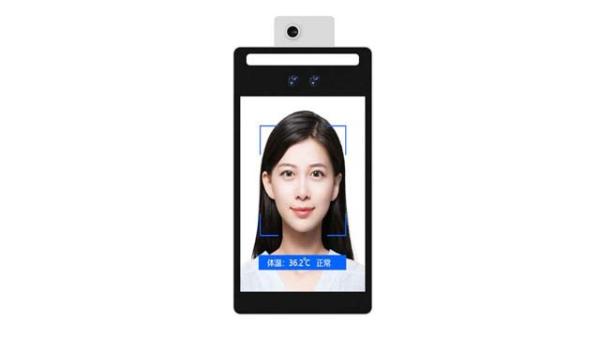

    RAKINDA F2-H Face Recognition Device with Live Temperature Detection


    Rakinda F2-H face recognition temperature measurement tablet is embedded type certification device based on Android system. F2-H supports the face temperature measurement function, which can quickly and accurately test the body temperature and give an alarm when detecting high temperature. It is suitable for office areas, hotel gates, office buildings, schools, shops, communities, public services and management projects.


    It supports 1280P HD cameras, speakers, COM ports and TCP / IP communication methods, supports external ID SD card readers, QR code readers and ID card readers and supports multiple identity authentication methods, which can be used in conjunction with personnel channel to facilitate personnel access management.


    Product Parameters:


    Face Recognition Temperature Measure all-in-one Machine
    Product modelF2-H

    Characteristics

    Main functionFace recognition temperature measurement
    Use environmenIndoor , semi-outdoor
    ColorSilver

    Camera

    TypeRGBInfrared
    Resolution2 million pixels2 million pixels
    ApertureF2.8F2.8
    Focal length3.18mm3.18mm

    Software

    Dynamic


    automatic


    automatic

    Vertical wide

    angle


    84°


    84°

    Horizontal wide

    angle


    54°


    54°

    Infrared

    supplement light

    Support

    White

    supplement light

    Support

    Core parameters

    AndroidAndroid7.1
    CPUQuad-core, 1.8GHz
    storage capacityRAM 2G ROM 8G

    Human-comput er interaction


    Monitor

    8 inches, full viewing angle, 170 ° IPS LCD screen, resolution

    800 * 1280

    Touch screensupport

    Face sensing

    module

    support

    Face temperature measurement

    module


    support,Serial / I2C interface

    Card readerSupport, Optional

    Communication

    method

    Ethernet10/100 Ethernet
    WIFIComply with IEEE802.11b / g / n standard (2.4G)

    Identification Method

    FaceSupport
    IC cardSupport, optional

    Input output interface

    RJ45 interfaceSupport 10/100 Mbps

    Power supply

    interface


    DC12V-2A

    PowerAdapterDC12V-2A

    Environmental requirements

    Operating

    temperature

    -20℃~60℃

    Working

    humidity


    20%~90% (non-condensing)

    Static protection

    level


    IEC61000-4-2, LEVEL3

    External Interface Definition
    TypeInterfaceExplanation
    USBUSB 2.0Support
    Ethernet portRJ4510/100 Ethernet

    Relay


    NC COM NO

    Relay normal off/Common/normal on.Usually,door lock supply is positively connected to the COM port,and then according to the door lock type,relay power negatively connected NO port or NC

    port. Note: Maximum load of relay contact is 2A


    Gate sensor

    IN

    GND


    Check door open/close status, input

    Exit

    button

    PUSH1

    GND


    Press the button,door opening control signal,input


    Serial

    RX

    TX


    RS232


    Output power

    5V

    GND


    Support device external output 5V


    Wiegand

    WG_D1 WG_D0

    GND


    Wiegand output interface, support 26bit / 34bit protocol


    Input power

    GND

    12V+

    Power input:12V DC

    Temperature measurement module

    Operating temperature

    0℃ ~ +55℃

    Storage temperature

    -20℃ ~ +65℃

    Power consumption

    < 0.3w


    Basic Parameters


    Pixel


    32*32 Real-time temperature output

    Measurement accuracy

    I + 0.5℃

    Measuring distance

    0.3 ~ 1.0m


    WIFI


    2.4G 802.11b/g/n


    Bluetooth


    BluetooH4.0
