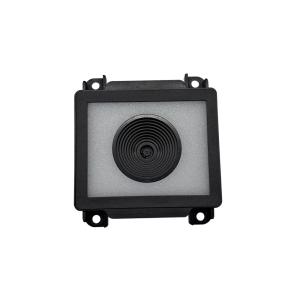

    LV5400 USB/RS485 Industrial QR Code Reader with High Integration

    Ask Lasest Price
    Brand Name : Rakinda
    Model Number : LV5400
    Certification : CE,FCC,ROHS
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    LV5400 USB/RS485 Industrial QR Code Reader with High Integration

    The LV5400 barcode scanning module is a cutting-edge industrial solution designed for demanding environments. Featuring high-density integration and multi-protocol compatibility (USB, TTL, RS232, RS485), this module delivers stable performance in manufacturing, logistics, and access control systems. Engineered with wide voltage input (4.5V–16V) and -20℃ to +60℃ operational tolerance, it excels in extreme conditions. The LV5400 supports 1D/2D barcodes, including QR, Data Matrix, and PDF417, with ±55° tilt sensitivity and 360° rotation adaptability. Its customizable OCR recognition and RGB LED lighting ensure flexibility for specialized industrial applications.


    Industrial Barcode Reader Features:
    - Industrial Durability: Operates in -20℃ to +60℃ with IP-rated reliability.
    - Multi-Protocol Support: USB, TTL, RS232, RS485 interfaces for seamless integration.
    - High-Speed Scanning: 640×480 CMOS sensor with 5mil accuracy for 1D/2D codes.
    - Wide Voltage Compatibility: 4.5V–16V input for versatile power solutions.
    - Customizable Lighting: RGB LEDs with adjustable brightness for low-light environments.


    Parameters of Rugged QR Code Reader

    Scan PerformanceIimaging sensor64 0× 48 0 CMOS
    lightingDefault white, customized RGB any color
    Read code system2DPDF417, Data Matrix, QR Code, AZTEC
    1DAnd EAN-13,EAN-8,UPC-A,UPC-E,Code 39,Code 128,ISBN,Code 93,Code 11,UCC/EAN-128,GS1 Databar,Interleaved 2 of 5,Matrix 2 of 5,Industrial 2 of 5,Codabar,Standard 2 of 5,MSI-Plessey,GS1 composite code, et al
    Reading accuracy1D≥ 5mil 2 D≥ 7 mil
    Typical reading of the depth of field10-160mm Alipay payment code
    20-130 mm EAN13 13 mil
    Symbol Contrast≥20%
    Bar code sensitivityTtilt ± 55°, deflection ± 55°, and rotation 360°
    Field of view AngleHorizontal 72°, vertical 54°
    Mechanical and Electrical ParametersCommunication interfaceUSB (optional, HID, virtual serial port), TTL serial port; customized RS 232, RS48 5
    Visual dimensions (mm)64.8(D)× 60.5(W)× 23.7M ax (H)
    Weight27 g
    Working voltage

    Power supply is 1:4.5V-16V

    Power supply 2:3-3.6 (3.3V power supply)

    Note: Power supply 1 and power supply 2, not at the same time.

    Rated current(Typical value) is less than 190 mA (5V input)
    Enviromental ParameterWorking temperature-20℃~+ 60℃
    Storage temperature-40℃~+70℃
    Working humidity5%~95% (no condensation)
    Environmental light0~100,000LUX
    Thermal Shock ResistanceMaximum temperature60 °C (140 °F)
    Minimum Temperature-20 °C (-4 °F)
    Cycle Index30 minutes for high temperature; 30 minutes for low temperature
    Period24
