Product Description:
Rolling shutter doors are generated by rolling shutter making
machines and can be used in a variety of applications, such as
parking doors, home doors, shops, garages, etc. These
widely-adopted doors are not only strong, but also offer adequate
protection and safety against thefts and fires, particularly when
enough steel is used in their production.
If you have any custom ideas regarding production, don't hesitate
to reach out to us. We can cater to your requirements by providing
different roll forming machines for various shutter doors. Simply
provide us with the design drawing of the door, and our engineers
will be happy to offer a good suggestion. Furthermore, we can also
provide professional advice for any new project.
Features:

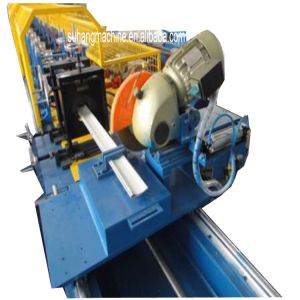

- Product Name: Metal Shutter Door Roll Forming Machine
- Transmission: Chain
- Roller Stations: 18-20 Stations
- Shaft Diameter: 70mm
- Type: Roll Forming Machine
- Roller Material: 45# Steel
Technical Parameters:
| Parameter | Value |
|---|
| Control System | PLC |
| Forming Speed | 10-12m/min |
| Cutting Type | Hydraulic Cutting |
| Voltage | 380V/50HZ/3Phase |
| Material Thickness | 0.2-0.4mm Galvanized Steel Or Aluminum Coil |
| Roller Material | 45# Steel |
| Material | Steel |
| Weight | 4.5T |
| Power | 7.5KW |
| Type | Roll Forming Machine |
Applications:
Sussman Machinery's SM-PUSD Shutter Door Roll Forming Machine is an
ideal solution for any industrial or commercial application that
needs to produce shutter doors. The machine is powered by a
380V/50HZ/3Phase motor that is able to generate 18-20 stations with
a weight of 4.5T. It is certified with CE, ISO, and SGS standards
and can be used to form galvanized steel or aluminum coil with a
thickness of 0.2-0.4mm. The cutting tolerance of the machine is
±2mm and it is manufactured in Jiangsu, China. The SM-PUSD Shutter
Door Roll Forming Machine is a reliable and robust solution for
turning galvanized steel or aluminum coils into shutter doors with
high precision and efficiency.
Customization:
Sussman Machinery Metal Shutter Door Making Machine, Metal Shutter
Door Roll Forming Machine, Metal Shutter Door Making Machine Price
Brand Name: Sussman Machinery
Model Number: SM-PUSD
Place of Origin: Jiangsu
Certification: CE, ISO, SGS
Roller Material: 45# Steel
Dimension(l*w*h): 7000mm*1100mm*1200mm
Weight: 4.5T
Size: 7.5m*1.2m*1.5m
Forming Speed: 10-12m/min
Support and Services:
Technical Support and Service for Shutter Door Roll Forming Machine
We provide comprehensive technical support and service for our
Shutter Door Roll Forming Machine, including:
- Comprehensive technical information and training for customers
- Installation and commissioning of the product
- Regular maintenance and technical support
- Troubleshooting and problem solving
- Spare parts supply
