Airport Security Baggage X ray Machine Scanner For Cargo Inspection
Model: SPX-8065
Features:
1. Energy save design
2. Intelligent software, clear image
3. Continuous working for 10000h
4.TIP function to assist to find the explosive, drug
5. Dual Energy, high performance

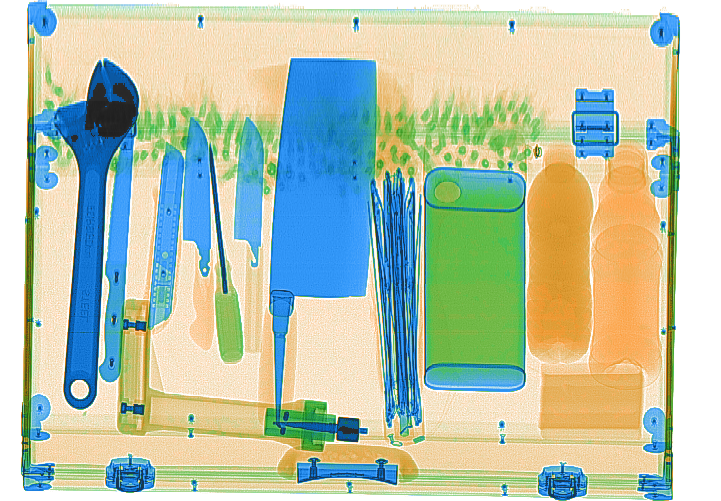

Image System :
Technical Principle: Dual-energy X-ray Imaging; L Shaped Array,
Monitor: High Resolution Color, LCD Accord, 17inch
Image Display: High resolution of 1024 * 1280 pixel;
Image Grey Level: 65536
X-ray Sensor: L-Shaped Photodiode Array (multi-energetic) , 12bit Deep
Image Enhancement: 1-64times enlargement continuity, Color/BW, negative, high/low
penetration, organic /inorganic Stripping, general enhancement, and
pseudo color, etc.
Image Recall: All preceding images recallable, retrieval.
Explosives & Narcotics Detection: Explosives & narcotics alarm and highlight according to atomic
number signature
High Density Region Alarm: Impenetrable region alarm and highlight, for possible concealing
of threats and contrabands
Threat Image Projection: Inserting fictional, but realistic images of threat items into
baggage during screening operation, for maintenance of vigilance,
as well as training and assessment of image identification
capability
Image Archive: Up to 100,00 images stored automatically, enable transferring to
USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions : Time/date display, counters, user management, system-on/X-ray-on
timers, power on self test, built-in diagnostic facilities,
dual-direction scanning, system log, system standby and stimulant
training, ADS etc.
Network Applications: Multiple remote applications available based on Ethernet LAN and
windows platform, such as image centralized storage and identify,
recheck workstation, and network TIP, etc.
Images process: 24bit real time processing ,4colors analysis, Images displayed
marked date and ID NO ,Count the number of bags ,Memory gray
level:65536
General Specification
Tunnel Size: | 800(W)*650(H)mm |
Conveyor Speed: | 0.22m/s |
Conveyor Max Load: | 200kgs |
Wire Resolution: | 32AWG to 38 AWG |
Spatial resolution: | horizontal:1.3 or 1.0mm,
vertical: 1.3 or 1.0mm |
Penetration: | 27 to 32 mm Steel |
Film Safety: | Guarantee ISO1600 Film |
X-ray Leakage: | <1μGy/h (at a distance of 5cm From external housing) |
| Pass rate: | 720 bags per hour |
Beam direction: | Diagonal |
Generate angle: | 80 degree |
Anode Voltage: | 140Kv |
Anode power: | 0.4 to 0.5mA |
Cooling / Duty Cycle: | Oil Cooling /100% |
X-ray Sensor: | L-Shaped Photodiode Array (mono-energetic), 12bit Deep |
Monitor: | High Resolution Color, LCD Accord, 19 inch |
Image Processing: | Edge enhancement, image strengthening, image lightening, reducing darkening, image returning, image retrieval. |
Image Grey Level: | 4096 |
Image Max Resolution: | 1024 * 1280 pixel |
Image Processing: | 24bit for processing real time |
Image storage: | Storage100000 pictures in real time |
Zoom: | 64 Times Enlarge, Whole screen continuous observation |
Operation temperature/Humidity: | 0℃-45℃/20%-95%(non-condensing) |
Storage Temperature/Humidity: | -20℃-60℃/20%-95%(non-condensing) |
Operation Power: | 220VAC(±10%)50±3Hz |
Power Consumption: | 1.8 KW (max), 0.3KW(working) |
Noise: | <58db |
Operating Environment:
Operation temperature/Humidity: 5℃～+40℃/10%-90%(non-condensing)
Storage Temperature/Humidity: -40℃to 60℃/ 5%-95%(non-condensing)
Operation Power: 220VAC(+10%～-15%50±3Hz (Optional:
100VAC,110VAC,120VAC,200VAC)
Power Consumption: 1.3KW (max), 1KW(working)
Noise: <58db
Dimensions (L×W×H) :3638.5mm x1295mm x1916.5 mm
Device Weight: 900Kg
G. Weight: 1370Kg
Packing Volume: 10.63CBM
Computer Character:
CASE: IPC7132
Power: 250W/ATX
Main board: AIMB 501G2
CPU: G1610 2.6G
RAM: 2GB 1600MHz DDR3
Hard Disk: SEAGATE 500G 3.5”
X-ray Generator:
Anode Voltage: 140kv
Anode power: 0.2-1.2mA
Generate angle: 80 degree
Brand: Own made
Generate direct: from top to bottom
Cooling / Duty Cycle: Oil Cooling /100%
