    Replace W01-358-7996 Firestone Convoluted Air Spring Bag 3B12-335 Goodyear

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 3B7996
    Certification : ISO/TS16949:2009
    Price : $69.9-79.9/pc
    Payment Terms : T/T, Western Union, L/C
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    • Product Details
    • Company Profile

    Replace W01-358-7996 Firestone Convoluted Air Spring Bag 3B12-335 Goodyear

    Good Quality Replace W01-358-7996 Firestone Convoluted Style Air Spring Bag 3B12-335 Goodyear

    Product Description

    Item

    Industrial Air Spring

    Brand

    GUOMAT

    Material

    Rubber,Steel

    Warranty

    12 Months

    MOQ

    1 pc

    Type

    Triple Convoluted Air Shock


    Technical Data : GUOMAT 3B7996

    Top plate bolt/stud: M12X1.75
    The bolts and combo stud distance of the top cover plate: 157.5 mm
    Threaded hole of the bottom cover plate: 2X3/8-16UNC
    The t
    hreaded hole center distance of the bottom cover plate: 157.5 mm
    Combo stud: 1/4NPTF,M18X1.5

    Top plate diameter: 231mm
    Diameter of the bottom cover: 231 mm

    Maximum diameter of rubber bellows: 330 mm
    Working stroke: minimum 117 mm to maximum 460 mm
    Maximum height: 460 mm
    Minimum height: 117mm

    Compression height: 343mm


    Technical Data : Firestone W01-358-7996

    Top cover plate diameter: 9.00

    Bottom cover plate diameter: 9.00

    Combination Stud/Air Inlet Stud Outside Thread is 3/4-16

    Bolt or Stud: 1/2-13

    Threaded Hole 3/8-16 Blind Nut on Bead Plates: 1/2-13 Pistons

    The distance of Combination Stud and Bolt: 6.20

    The distance of threaded Hole: 6.20

    Rubber bellow diameter: 11.70

    Min.height: 4.55


    Refer Numbers

    Firestone

    W01-358-7996 / W01 358 7996 / W013587996

    Firestone

    WO1-358-7996 / WO1 358 7996 / WO13587996

    Firestone

    38

    Contitech

    FT330-29 / FT 330-29 / FT330-29 520 / FT 330-29 520

    Goodyear

    3B12-335 / 3B 12-335 / 3B12 335

    Goodyear

    578933100 / 578 93 3 100 / 578-93-3-100

    Triangle

    6334 / 4520

    Granning/Tuthill

    8221


    Air Springs of the Same Firestone Style Model

    Style

    Firestone NO.

    Replace

    38

    W01-358-7990

    Watson&Chalin AS-0048

    38

    W01-358-7994

    Watson&Chalin AS-0019-1F

    38

    W01-358-7995

    Watson&Chalin AS-0048-1F

    38

    W01-358-7998

    Hendrickson Aux.001560

    38

    W01-358-8006

    -

    38

    W01-358-8008

    Watson&Chalin AS-0019

    38

    W01-358-8010

    Ridewell 1003588010CC

    38

    W01-358-8014

    Ridewell 1003588014C

    38

    W01-358-8016

    Ridewell 1003588016C

    38

    W01-358-8018

    -

    38

    W01-358-8025

    -

    38

    W01-358-8027

    Suspensions Inc. 200117

    38

    W01-358-8030

    Ridewell 1003588030C

    38

    W01-358-8032

    Hendrickson Trailer S12405

    38

    W01-358-8033

    Hendrickson Trailer S14487

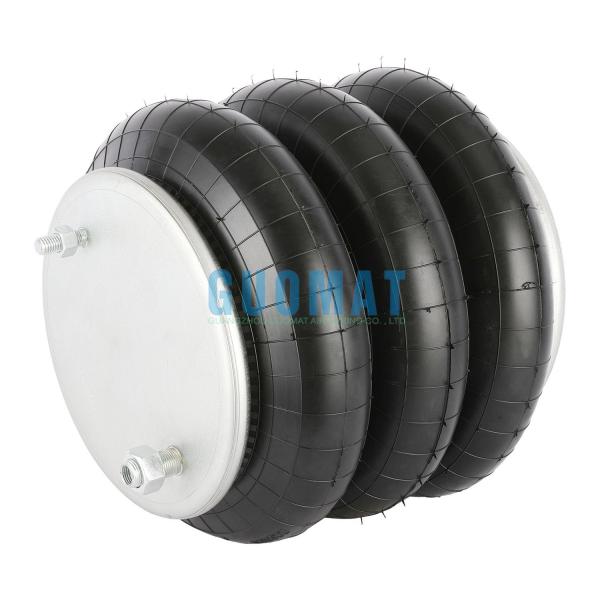

    The Real Pictures
