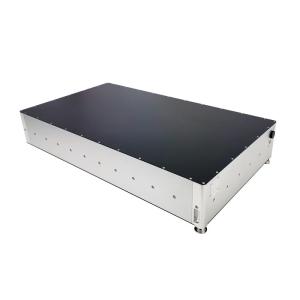

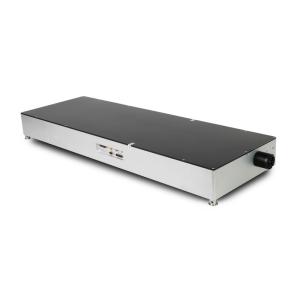

FSY series femtosecond fiber lasers have been widely used in the material micro-processing field. Our femtosecond fiber lasers offer >80W average power, >5MHz repetition rate with the pulse energy upto 100µJ.
| Model | FSY-1035-6 | FSY-1035-10 | FSY-1035-20 | FSY-1035-50 | FSY-1035-100 |
| Center Wavelength | 1035nm | 1035nm | 1035nm | 1035nm | 1035nm |
| Total power | >6W | >10W | >20W | >50W | >100W |
| Repetition rate | 80MHz | 1Hz - 5MHz | 1Hz - 5MHz | 1Hz - 5MHz | 1Hz - 5MHz |
| Power stability | <1% | <1% | <1% | <1% | <1% |
| Pulse energy | >10µJ | >40µJ | >100µJ | >200µJ | |
| Number of burst pulse | 1 ~10 | 1 ~10 | 1 ~10 | 1 ~10 | |
| Burst pulse combinatintion energy | >100µJ | >120µJ | >300µJ | >400µJ | |
| Pulse width | 150fs | 400fs - 6ps | 400fs - 8ps | 400fs - 8ps | 400fs - 8ps |
| Beam diameter | 3mm | 3mm | 3mm | 3mm | 3mm |
| Beam pergence | <1mrad | <2mrad | <2mrad | <2mrad | <2mrad |
| Polarization | Linear | Linear | Linear | Linear | Linear |
| Sync (trigger) output | SMA TTL pulse | SMA TTL pulse | SMA TTL pulse | SMA TTL pulse | SMA TTL pulse |
| Power supply | AC 100V - 240V, 50/60Hz, Rated output>960W | AC 100V - 240V, 50/60Hz, Rated output>960W | AC 100V - 240V, 50/60Hz, Rated output>960W | AC 100V - 240V, 50/60Hz, Rated output>960W | AC 100V - 240V, 50/60Hz, Rated output>960W |
| Dimensions (L*W*H) | 680*480*212mm | 680*480*212mm | 680*480*212mm | 1200*410*141mm | 1200*410*141mm |
| Control | RS232 or DB25 | RS232 or DB25 | RS232 or DB25 | RS232 or DB25 | RS232 or DB25 |
|
