Product Description:

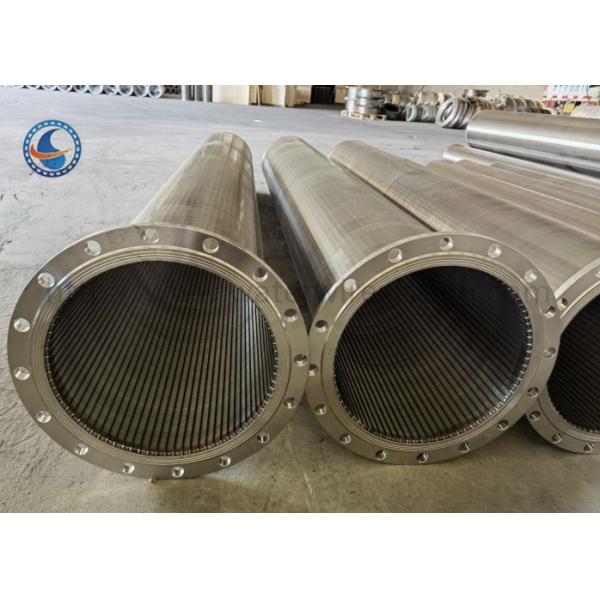

Profilte Wire Wrapped Screen
This type of screen is a popular choice for water and oil
filtration, as it is manufactured in a unique "V" or wedge shaped
wire that wraps around an internal array of longitudinal support
rods. The intersections of these wires are fusion welded, creating
a continuous slot opening.
This screening method ensures that the well is able to quickly
receive water (or oil) in ample quantities, while simultaneously
keeping out the majority of sand and gravel.
Features:
This material provides high mechanical strength, making it capable
of bearing large pressure drops.
It features equal slots for filtering, which is conducive to the
formation of an evenly distributed filter cake. In addition, it is
easy to clean for reuse.
On top of that, the wedge type slot provides enhanced backflushing
and regeneration performance.
Moreover, this material has impressive resistance to pressure,
temperature, aging, and corrosion, thereby making it applicable for
various types of fluids.
Technical Parameters:
| Parameters | Descriptions |
|---|
| Wire size | 1*2mm, 1.5*2.5mm, 2*3mm, 2.2*3.5mm, 3*4.6mm |
| Support rod | 2*3mm, 3*4.6mm, 3*5mm, 3.2*6mm |
| Advantage | High Strength, Good Wear Resistance, etc. |
| Corrosion resistance | Acid, Alkali, etc. |
| End connection | Welded Ring/ Thread Couplings/ Flange |
| Application | Oil, Gas, Water, etc. |
| Material | Stainless Steel |
| Slot size | Min 0.025mm |
| Diameter | 25-1000mm |
| Edge treatment | Welded, Wrapped, etc. |
| Filter | Wound screen |
Applications:
Wedge wire screen is an incredibly versatile tool and can be used
for a wide range of applications in many different industries. It
is often used in the mining, coal, petroleum, fertilizer, grain,
and salt industries to sieve liquid, powder, and other materials.
The petroleum, chemical, metallurgical, mining, pharmaceutical, and
drilling industries also rely heavily on wedge wire screens for
purification processes. Wedge wire screen is highly reliable and
effective in performing any task and can meet the needs of almost
any industry.
Customization:
Wire Wrapped Screen Customization Service
Brand Name: Hengyuan
Model Number: HY003
Place of Origin: Hebei
Minimum Order Quantity: 1 meter
Packaging Details: wooden box, container
Delivery Time: 5-8 work days
Application: Oil, Gas, Water, Etc.
Material: Stainless Steel
Diameter: 25-1000mm
End connection: Welded Ring/ Thread Couplings/ Flange
Edge treatment: Welded, Wrapped, Etc.
Wound screen, filter, wedge wire screen
Packing and Shipping:
Wire Wrapped Screen Packaging and Shipping
The Wire Wrapped Screen is packaged and shipped in individual
cartons or pallets depending on the quantity of product ordered.
Each carton or pallet is securely sealed with tape and includes a
packing list. The cartons and pallets are then labeled with the
customer’s address and shipment information.
The cartons or pallets are then loaded onto a trailer and shipped
to the customer’s address. All shipments are tracked and monitored
to ensure timely delivery.
