Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Name: Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD
Brand: Qingdao Florescence
Price: 1 USD

Ask Lasest Price
Brand Name :	Qingdao Florescence
Model Number :	RY-Pneumatic Rubber Fender23070703
Certification :	CCS,TUV, BV, ISO, etc
Price :	Negotiable
Payment Terms :	T/T, L/C, etc.
Supply Ability :	50 pieces per month
Delivery Time :	15-25 Days

Add to Cart

Product Details
Company Profile

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Florescence pneumatic rubber fender has been in use for around 50
years.

It is the leading anti-collision device for marine application in
the world.

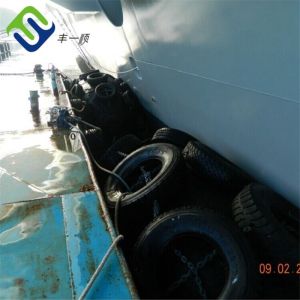

This compressed air flled rubber fender is used as a protective
medium for ship to ship contact (STS), ship to quay (STQ) and
ship-to-berthing (STB).

Yokohama pneumatic rubber fender can be delivered in various sizes
and types.

Chain and tyre net (CTN) type is usually recommended to protect the
fender body, but sling type or body only is also available.

1.Outer Rubber
Cover outside on the ball of rubber layer, which is used to protect
skeleton material and inner rubber ball from damage of
external force.
2.Cord layers
Reinforced cord rubber layer is composed of winding synthetic cord
layer, it is mainly used for maintain the internal air
pressure.
3. Inner Rubber
On the ball inside the rubber layer, which is used to prevent air
leakage and control the ball pressure.
4. End Flange
The metal parts at both ends of fender, which can be fitted with
charging valve and safety valve.

Specification
DXL(m)
0.05Mpa(Initial pressure 0.05Mpa)(Initial pressure 0.08Mpa)
Weight(kg)Reaction force(KN)GEA
(KJ)
Weight
(kg)
Reaction force(KN)GEA
(KJ)
1.2X2.01202976316539088
1.35X2.5165427102226561142
1.5X3.0315579153370761214
1.7X3.0405639191436840287
2.0X3.55908753086321150430
2.5X4.01050138166311101815925
2.5X5.513332019943141026531317
3.0X5.0188020001050215527091571
3.0X6.0216024881312247032921888
3.3X4.5202018841175230024761640
3.3X6.0230027831675260036522338
3.3X6.5270030151814308039612532
3.3X10.6440352573067502069074281
4.5X9.0655457474752747075516633
4.5X128739798464739960104909037
Note:The weight is the fender body weight(without tires and
chain),with weight error of ±10% and counterforce error of ±10%
FLORESCENCE products are designed, manufactured, and tested by per
ISO 9001:2015 requirements. And every unit is robustly built to the
stringent requirements of ship surveyors such as CCS, BV, RS, ABS,
LR, etc.We are the supplier of many navy, such as Bangladesh Navy,
France Navy, Greece Navy, Thailand Navy, Italy Navy, Philippines
Navy,etc.FLORESCENCE considers our clients as apart of the team,
treating them as partners. We are always together with them on each
step of the way, from finding the solutions of fender using and
ship launching to the manufacturing and installation operations on
site.Our rich experience has earned us a reputation as a dependable
partner in many ports and shipyards around the world.

Product Tags:

Yokohama Pneumatic Rubber Fender

STD Pneumatic Rubber Fender

STS Floating Yokohama Fender

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Marine Yokohama Pneumatic Fender With Chain And Tire Net For STS And STD

Wear Resistant Inflatable Dock Fenders Natural Rubber Materials CCS Assured

Customized Marine Pneumatic Rubber Fender Diameter 0.3 - 4.5m CCS Certification

Yokohama Type Custom Boat Pneumatic Rubber Fenders Easy Installed

Ocean Platform Protection Marine Rubber Fender Initial Pressure 0.05 - 0.08MPa

Company Info.

Qingdao Florescence Marine Supply Co., LTD.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Send your message to this supplier

*From:
Your email address is incorrect!
To: Qingdao Florescence Marine Supply Co., LTD.
*Subject:
Your subject must be between 10-255 characters!
*Message:
For the best results, we recommend including the following details: --Self introduction --Required specifications --Inquire about price/MOQ Your message must be between 20-3,000
Yes! I would like your verified suppliers matching service!

All Categories

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

Yokohama Pneumatic Rubber Fender

STD Pneumatic Rubber Fender

STS Floating Yokohama Fender

Floating Marie Ship Yokohama Type Pneumatic Rubber Fender For STS Or STD

You May Like

Marine Yokohama Pneumatic Fender With Chain And Tire Net For STS And STD

Wear Resistant Inflatable Dock Fenders Natural Rubber Materials CCS Assured

Customized Marine Pneumatic Rubber Fender Diameter 0.3 - 4.5m CCS Certification

Yokohama Type Custom Boat Pneumatic Rubber Fenders Easy Installed

Ocean Platform Protection Marine Rubber Fender Initial Pressure 0.05 - 0.08MPa

Specification DXL(m)	0.05Mpa(Initial pressure 0.05Mpa)			(Initial pressure 0.08Mpa)
Specification DXL(m)	Weight(kg)	Reaction force(KN)	GEA (KJ)	Weight (kg)	Reaction force(KN)	GEA (KJ)
1.2X2.0	120	297	63	165	390	88
1.35X2.5	165	427	102	226	561	142
1.5X3.0	315	579	153	370	761	214
1.7X3.0	405	639	191	436	840	287
2.0X3.5	590	875	308	632	1150	430
2.5X4.0	1050	1381	663	1110	1815	925
2.5X5.5	1333	2019	943	1410	2653	1317
3.0X5.0	1880	2000	1050	2155	2709	1571
3.0X6.0	2160	2488	1312	2470	3292	1888
3.3X4.5	2020	1884	1175	2300	2476	1640
3.3X6.0	2300	2783	1675	2600	3652	2338
3.3X6.5	2700	3015	1814	3080	3961	2532
3.3X10.6	4403	5257	3067	5020	6907	4281
4.5X9.0	6554	5747	4752	7470	7551	6633
4.5X12	8739	7984	6473	9960	10490	9037
Note:The weight is the fender body weight(without tires and chain),with weight error of ±10% and counterforce error of ±10%
