84W 1.16A 115V Pellet Stove Convection Fan Motor Blower
The convection fan motor blower is specifically designed for use in
pellet stoves, which are appliances that burn small wood pellets to
produce heat. The fan motor blower helps to circulate the warm air
generated by the stove throughout the room or area where it is
installed.It is designed to withstand the high temperatures
generated within pellet stove during operation, ensuring its
durability and longevity.
Quick Review:
| Product Name: | 84W 1.16A 115V Pellet Stove Convection Fan Motor Blower | MH MODEL: | MH84-84536 |
|---|
| Rated Voltage/Frequency: | 115Vac/60Hz | Current(A): | 1.16 |
|---|
| Input Power(W): | 84W | Speed(RPM): | 1520 |
|---|
| Hi-Pot TEST: | 1500vac50hz,3Ma,1s | Bearing Type: | Sleeve Bearing |
|---|
| Insulation Class: | B | Agency: | UL |
|---|
| Thermally Protected: | TP | Wind Speed(m/s): | 13.6 |
|---|
| Air Volume(CFM): | 165 | Application: | STOVE, PELLET STOVE |
|---|
Production Features:
1. Be powered by 3,3-inch frame shaded pole motor, large torque,
high efficiency and large volume.
2. Quiet motor design.
3. Thermally Protected
4. Complete assembly with gasket included.
5. Improves fireplace efficiency, Helps reduce costly energy bills,
Heats large rooms effectively,
6. Can handle up to 500°F air in housing.
7. The whole machine is treated with black electrophoretic paint,
which is beautiful and rust resistant.

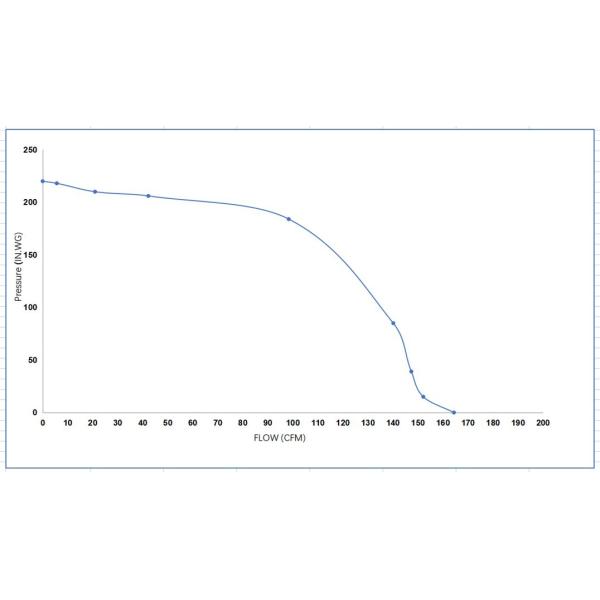

Air Flow Curve:
Shanghai MH Electric Co., Ltd, located in SHANGHAI, has been
specialized in the field of exporting Convecition Blower Air Fan,
cross flow fan, Fan Motor, Household appliance 3.3 inches moto3.3
inch motor , C frame, Squirrel Cage Blowers, Cooler Air motor for
several years. We have our own production facility and a strong
R&D team. We supply the core techniques service and professional guidance for
customers. And our products are exported to Americas, Middle East
and Asia. OEM or ODM is available. Welcome your business chat and
visit.
FAQ
Q1- What is the warranty of the motors?
The warranty is 18 months from the shipping date.
Q2- Can you design and make the motor as required?
Yes, we provide both ODM and OEM products.
Q3- What is your advantage?
Besides the good quality and the competitive price, we offer the
short lead time and quick response.
Q4- What is your terms of payment?
T/T 30% as deposit, and 70% before delivery. The term can be
negotiated for long-term business.
Q5- How to get the accurate quotation?
The accurate price will be quoted after the specification and
mounting dimension of the motor are checked.
Q6- Do you test all products before the delivery?
Yes, all products are tested OK before the delivery
Q7- Do you have any MOQ for motors?
Usually our MOQ is one pallet. But we accept the small quantity for
the trial order.
Q8- Do you have other products?
Yes, besides the shade pole motors and blowers ,we also offer OEM
production for some industrial motors such as single phase AC
motor, 3 phase industrial motor, stainless steel motor, BLDC fan
motor etc... And we offer the sourcing service for other products
required.
