4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035

    Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers

    Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers
    • Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers
    • Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers
    • Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers
    • Buy cheap 4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035 from wholesalers

    4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035

    Ask Lasest Price
    Brand Name : GUOMAT
    Model Number : 1T6047
    Certification : ISO/TS16949:2009
    Price : $79.9-99.9/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1000pcs/week
    Delivery Time : 2-8 work days
    MOQ : 10 Pcs
    • Product Details
    • Company Profile

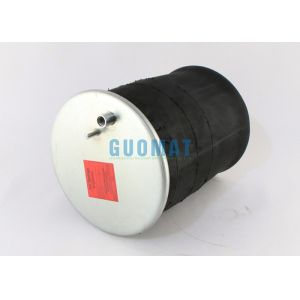

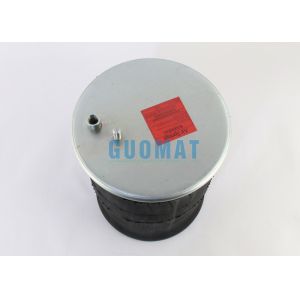

    4884N1P06/4884 N1 P06 Contitech Air Spring Truck Suspension Shock Absorber MAN 81436006035

    Contitech Air Spring 4884N1P06/4884 N1 P06 Truck Suspension Shock Absorber MAN 81436006035

    Product Details

    Truck suspension air springs are a type of suspension system that uses rubber bags that are filled with air to support a vehicle's weight and absorb shocks and vibration from the road. They are commonly used on trucks and other heavy-duty vehicles to provide a smoother and more comfortable ride while also improving handling and stability. Air springs can also be adjusted to change the height and stiffness of the suspension, making them a versatile and flexible solution for a wide range of vehicle applications.

    OEM Number
    OEM Contitech: 4884N1P06
    OEM Contitech: 4884 N1P06
    OEM Contitech: 4884 N1 P06
    OEM Contitech: 4884n1p06
    OEM Airtech: 34884K
    OEM Blacktech: RML 75995 C
    OEM Keva: 54884
    OEM Connect: MD 14884K
    OEM Vibracoustic: V1DF19B-1
    OEM Vibracoustic: V1 DF 19 B-1
    OEM Airfren: 2048846CM
    OEM Airfren: 20.4884.6CM
    OEM Airfren: 20 4884 6CM
    OEM DT: 3.66423
    OEM Templin: 04.010.6200.080
    OEM Templin: 04 010 6200 080
    OEM MAN: 81.43600.6035
    OEM MAN: 81436006035
    OEM MAN: 81 43600 6035

    GUOMAT 1T6047 Rubber Truck Air Spring Technical Data

    Top Cover Plate Diameter

    262mm

    Air Inlet

    M16X1.5

    Bolt/Stud

    M12X1.5

    Distance Between Air Inlet and Bolt/Stud

    84mm

    Base Width

    262mm

    Bolt/Stud on the Base

    M18

    Rubber Bellow Natural Diameter

    270mm

    Piston Width

    200mm

    Piston Height

    130mm


    For MAN Truck Suspension Air Shock

    MAN

    CONTITECH

    81.43601.0152

    4884N1P01

    81.43601.0151

    4882N1P01

    81.4301.0153

    4883N1P01

    81.43600.6044

    4885N1P02

    81.43600.6035

    4884N1P06

    81.43600.6037

    4883N1P06

    81.43601.6036

    4882N1P05

    81.43600.6046

    4886NP01


    Installing Rolling Lobe Air Spring with Top Plate

    • Fit the top crimping plate of theair spring to the chassis / frame of the vehicle. Press the bottom bead into an oval shape and push the bottom clamping plate through.
    • Align the bottom clamping plate and the piston to coincide with the hole pattern of the axles and stick the bottom clamping plate in the piston holes.
    • Screw the bottom clamping plate tightly onto the piston (if necessary secure the air spring with another person’s help to prevent it from twisting, or tighten prior to final mounting).
    • Mount the piston on the vehicle axle, inflate the air spring and lower vehicle. The rolling lobe air spring is now fitted and will automatically roll onto the piston.
