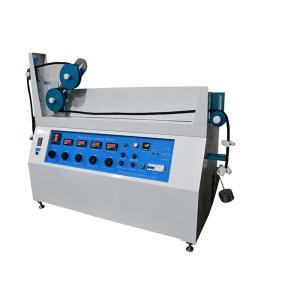

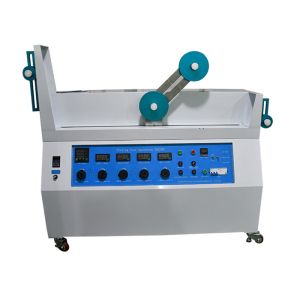

    IEC 60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables

    Ask Lasest Price
    Brand Name : Sinuo
    Model Number : SN2302
    Certification : Calibration Certificate (Cost Additional)
    Price : Customized
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 Sets Per Month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    IEC 60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables


    IEC60245-1 Torvature Testing Machine 1 0.33m/S For Finished Flexible Cables


    Technical Characteristics:


    Power Supply

    3 phase 5 wires 220VAC/ 60 Hz or 380V/50Hz

    Load Current

    0.5~25A, adjustable

    Load Voltage

    Line-to-line voltage 10~400V adjustable

    Testing speed

    0.33m/s

    Testing distance

    1000±20mm

    Suitable cores

    2-18

    Nominal cross-sectional area

    0.2~4mm2

    Diameter of pulleys

    60, 80, 120, 160, 200mm

    Test weights

    2*0.5kg with hook, 2*0.5kg with hole, 6*1kg with hole, 2*6kg with hook


    Equipment overview:


    This test instrument can meet the test requirements of domestic and international standards and can be widely used. It has a precision digital meter, so it can accurately measure smaller or larger current voltages. The pulley replacement method is simple and convenient. The test equipment adopts chain drive mechanism with stable performance and low noise.


    The tester is designed and manufactured in accordance with IEC 60227.2 Article 3.1, Figure 1, IEC 60245.2 Article 3.1, Figure 1, IEC60245-1 Article 5.6.3.1 and other standards. It meets the requirements of the relevant standards for mechanical strength bending test of rubber-plastic wires and cables. This test does not apply to flexible cables with a nominal cross-sectional area of the core greater than 4mm2 , and cables with more than 18 cores and more than two concentric layers.


    How to installand adjustof the pulleys?

    • Select the appropriate pulley according to the diameter of the test wire/cable and the number of wire/cable cores.
    • Installation: Loosen and remove retaining nut, pull out pulley, replace pulley, install retaining nut and tighten.
    • Adjustment: Release the screws of 1, 2, A, B pulleys, then adjust pulleys’ positions, to make segments of the sample are horizontal and parallel to each others. Shown as below pictures:
