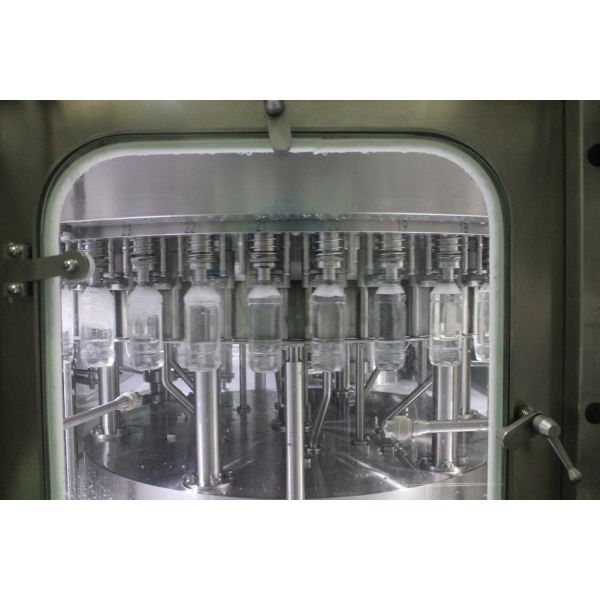

High Precision Less Backflow Ultra Clean Filling Machine
Specifications
Applicable products: Fruit juice, NFC cold chain, tea drinks,
protein drinks and other acidic or low-acid
Filling temperature: 65~68℃
Capacity: 15,000 bottles/hour ----54,000 bottles/hour (500ml)
Applicable bottle type 200ml-1500ml
Filling valve: Adopt mechanical valve/imported flow meter
valve/imported electronic weighing valve according to customer
needs
Technical features:
1. The six-valve blowing valve group, three blowing and two
recycling energy-saving solutions, enable customers to save energy
by more than 25%.
2. Customer-customized full servo stretching system to meet various
stretch ratios.
3. Wet peracetic acid packaging material sterilization process,
with a sterilization capacity of 5Log, makes packaging materials
more thorough and safer.
4. Complete and fully automatic CIP, SIP, COP, SOP systems ensure
the sanitary requirements of the inner and outer surfaces of the
equipment. 5. Complete aseptic isolation system to ensure aseptic
filling environment.
6. Adopt PROFIBUS intelligent control technology to realize whole
line control, intelligent data report, and real-time monitoring of
all links.
7. Non-contact imported electronic flowmeter/weighing filling
system/mechanical valve negative pressure backflow filling system
to ensure accuracy and safety.
8. Imported ion dust removal system to ensure the safety of
packaging.
9. Customers can customize imported AROL capping system.
Quality Control
To guarantee the excellent performance of our beverage production
lines and beverage machinery, we introduce advanced technology from
Germany and Italy, and constantly improve our production technology
of liquid filling. Apart from that, free trainings are offered to
our employees to help them improve technical skills. In addition,
we strongly believe that beverage production lines and beverage
machines with high pass rate and reliable quality can effectively
reduce production cost. Thus, we strictly implement product
inspection in every step of production, from raw material
acquisition to shipping our finished products, to ensure the
quality and pass rate. Besides, much attention is also placed on
perfect management system and high quality employees for a higher
working efficiency.
Certificates
1. Our beverage machinery is approved as qualified products for
seven years by Chinese beverage industry association.
2. Our company is approved as excellent supplier of filling
equipment four times by Chinese beverage industry association.
3. Our company is entitled "Star Enterprise" by Chinese food and
packaging machinery industry association.
4. Our company is approved as the enterprise technical center of
Hebei Province.
5. Our company obtains ISO9001:2000 International Quality
Management System Certification.
6. Our company is awarded as demonstration enterprise of national
CAD application engineering by Ministry of Science and Technology
of China.
7. All our products are awarded as CE certification.
8. Our company becomes the vice chairman of Chinese food and
packaging machinery industry association.
