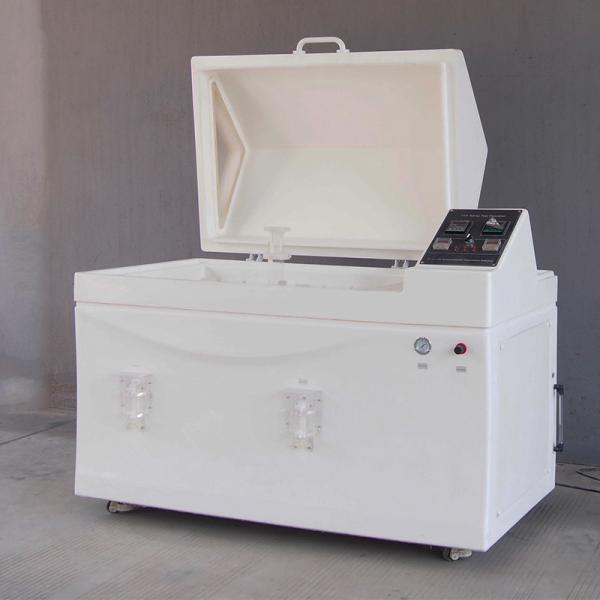

Environmental Test Chambers Salt Spray Corrosion Test Chamber Lab
Equipment
Features
The overall molding, corrosion resistance, shock, easy to clean and
no leakage.
Tower spray system, the salt spray is uniformity and the settling
volume is adjustable.
PVC or FRP cover could be optional, using PVC cover could clearly
see the test samples and spraying situation in working chamber.
Water seal structure and no salt spray overflow.
The circuit control board and other components are fixed the
location which is easy to check and maintain.
Control system
P.I.D Microprocessor temperature controller ensures a precise and
reliable control, the resolution is ±0.1℃ .
Universal type: With domestic digital controller.
All circuits are equipped with circuit breakers and all heaters are
equipped with overheating protection devices, Thedistribution
box is made of refractory resin.
Continuous or periodic spray optional and dual over-temperature
protection, which is safe and reliable.
Safety Alarm
With electric leakage, overload protection.
With short circuit, shortage of water, over-temperature alarm.
Corresponding Standard:
GB11158 GB10589-89
GB10592-89
GB/T10586-89
GB/T2423.22-2001
GB/T2423.1-2001
GB/T2423.2-2001
GB/T2423.3-93
GB/T2423.4-93
ASTM D1735
IEC60068-2-1.1990
IEC60068-2-2.1974
IEC 68-2-30
IEC68-2-03
EIA - 364-31C
EIA - 364-59
ASTM B117
1. Install the internal parts of the salt spray test chamber: tower
spray device, funnel, round rod, V-shaped sample rack, etc.
2. Connect the air source, turn on the power switch after the power
supply is connected.
3. Add water in the pressure barrel and the box, stop adding water
after the two low water level lights are off, and add water to seal
the sealing groove.
4, the purified water and sodium chloride salt in a ratio of 1:20.
Pour the prepared solution into the test inlet (turn off the light
of low salt water).
product description:
Model | B-SST-60 | B-SST-90 | B-SST-120 | B-SST-160 | B-SST-200 |
Internal Dim(W*H*D) | 60x45x40 | 90x60x50 | 120x100x50 | 160x100x50 | 200x100x50 |
External Dim(W*H*D) | 108x63x119 | 140x80x139 | 178x120x149 | 230x130x149 | 270x130x159 |
Cabinet Material |
Corrosion-resistant polymer material |
Laboratory temperature (℃) | A:25℃~70℃ B:0℃-70℃ C:-20℃-70℃ D:-40℃-70℃ |
Saturated air barrel temperature(℃) | 35±1℃50±1℃
Saline test method:35±1℃/Corrosion test method:50±1℃ |
Saturated air pressure (kg/c㎡) | 0.8-2.0±0.01 |
(ml／80c㎡.h)
Salt spray sedimentation rate (ml/80c㎡.h) | 1-2ml/80 cm2.h(Controllable) |
PH value | Salt water test method:6.5～7.2／Test method for corrosion resistance:3.0-3.2
Saline test method:6.5-7.2/Corrosion test method:3.0-3.2 |
Power Source | AC:220V 50Hz/AC:380V 60Hz |
Our Company:
Shanghai BOTO GROUP LTD is a high technology company specializing
in integrated incubation systems. We are conveniently located in
Shanghai City.
With 20+ years of incubator R&D experience from our technical
team, we have developed several series of the advanced integrated
hatchery system.
Also we have gained the Authorized Poultry Industry R&D Center
and been awarded the High-tech Enterprise by Chinese government.
Also, both our company and products are approved by ISO9001,
ISO14001, ISO45001, ISO50001
Customer Support Services
Ø Installation
Ø Training (Training customer employees)
Ø Calibration
Ø Preventative maintenance
Ø Replacement parts
Ø Assistance via phone or internet
Ø On-site diagnosis and repair/online diagnosis and repair
Packaging Dimensions: (WxDxH) 1610*1050*1400mm
Power supply source: single-phase, 220V±10%, 50Hz (can be
appointed)
Gross Weight: 150kg
HS Code: 8479899990
